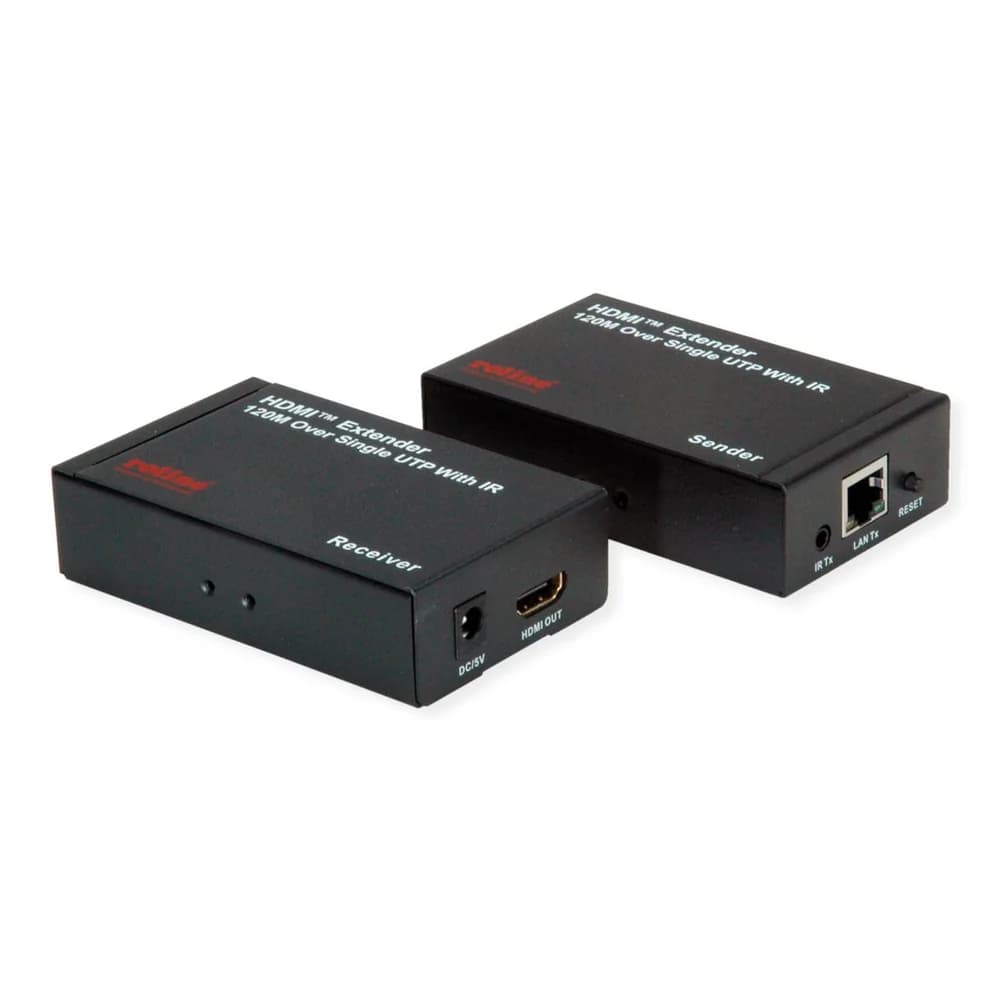

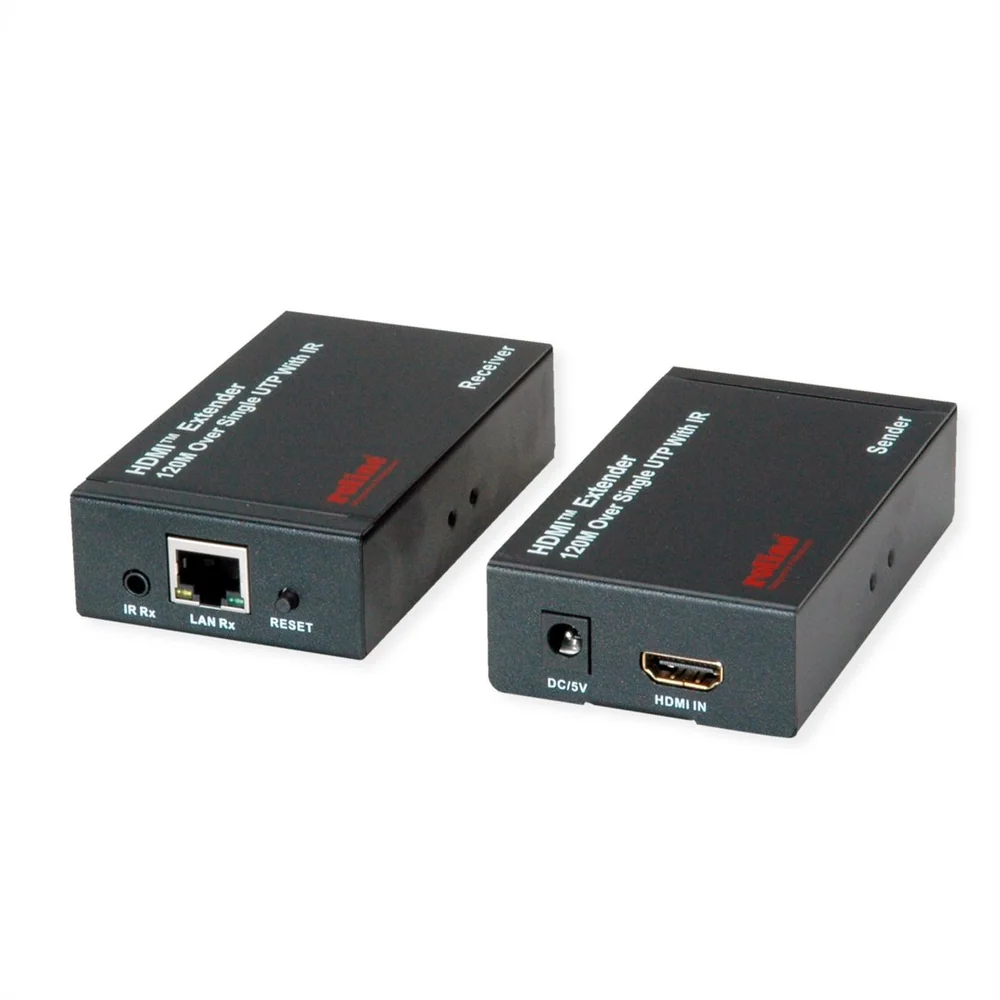

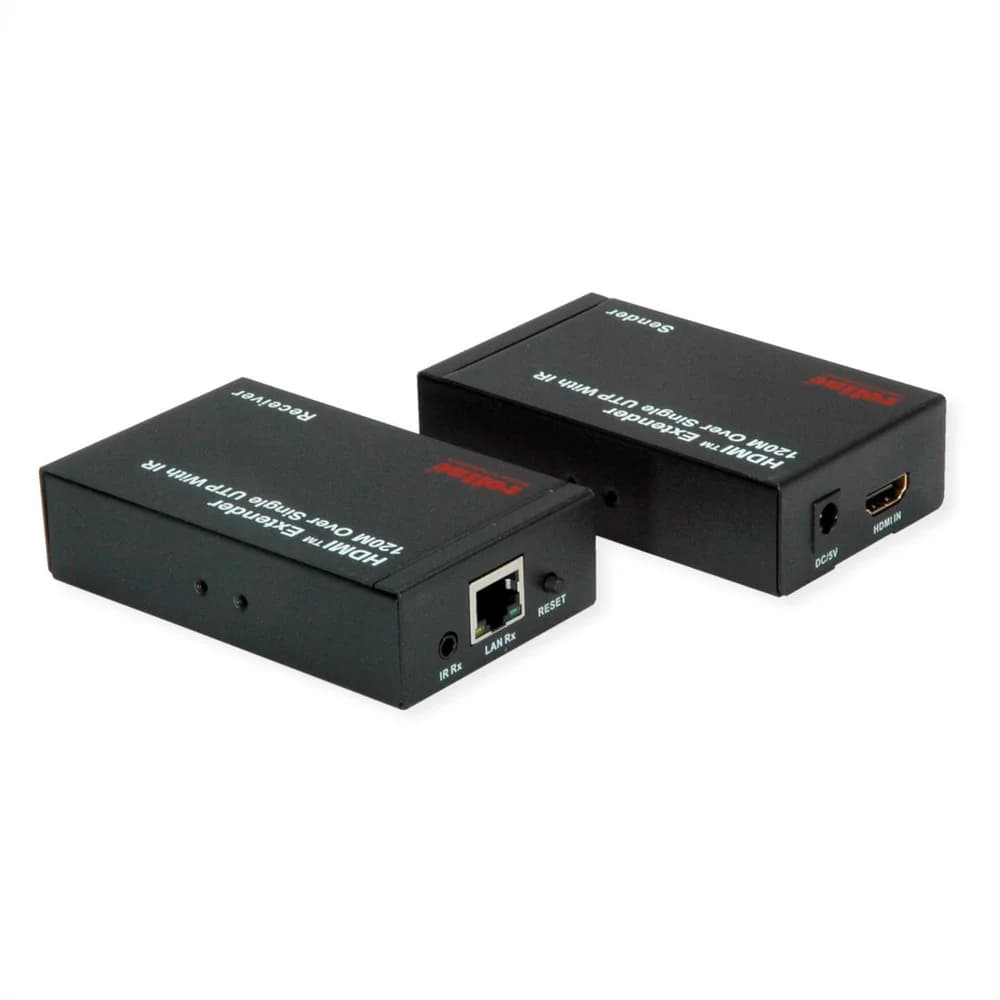

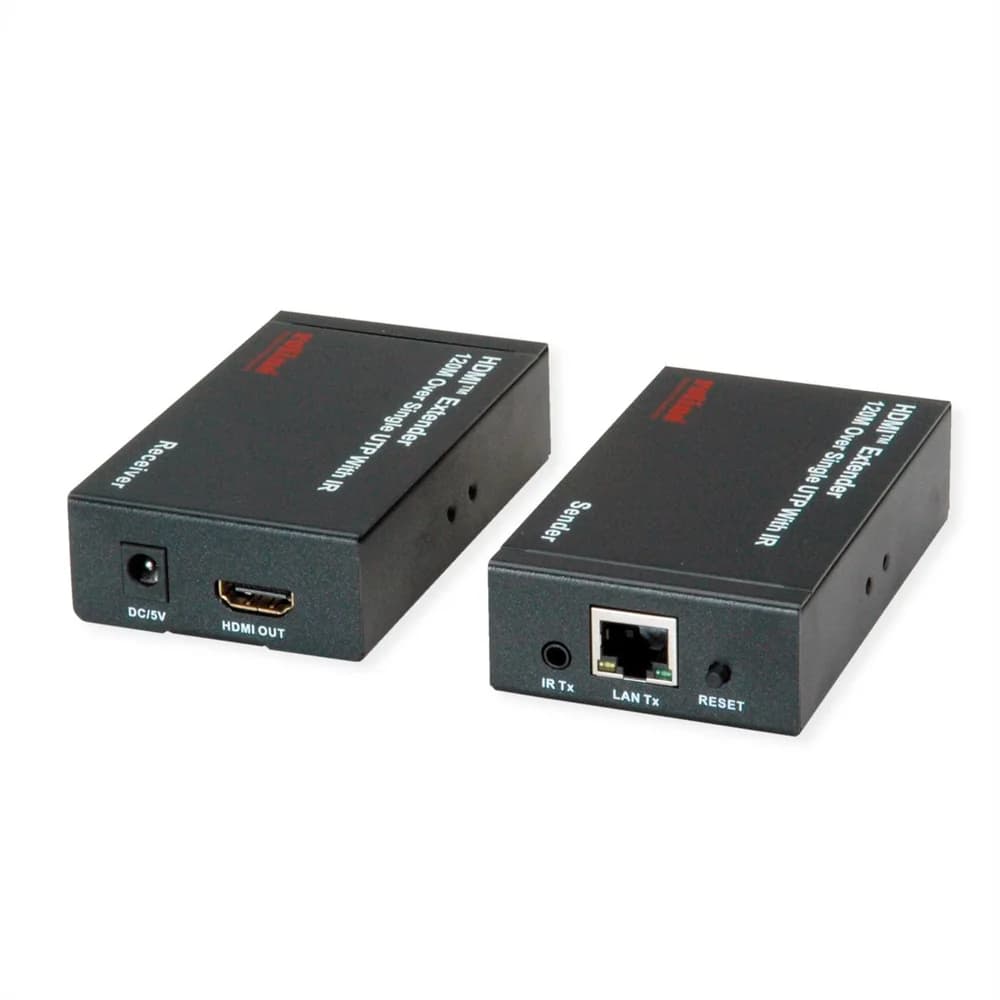

ROLINE HDMI over IP Extender, 1080P, 120 m, W/IR
- Item number
- 14.01.3641-4
- Part number
- 14.01.3641
- EAN
- 7630049673380
- Brand
- ROLINE
- Weight
- 291 g
With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with Full HD via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

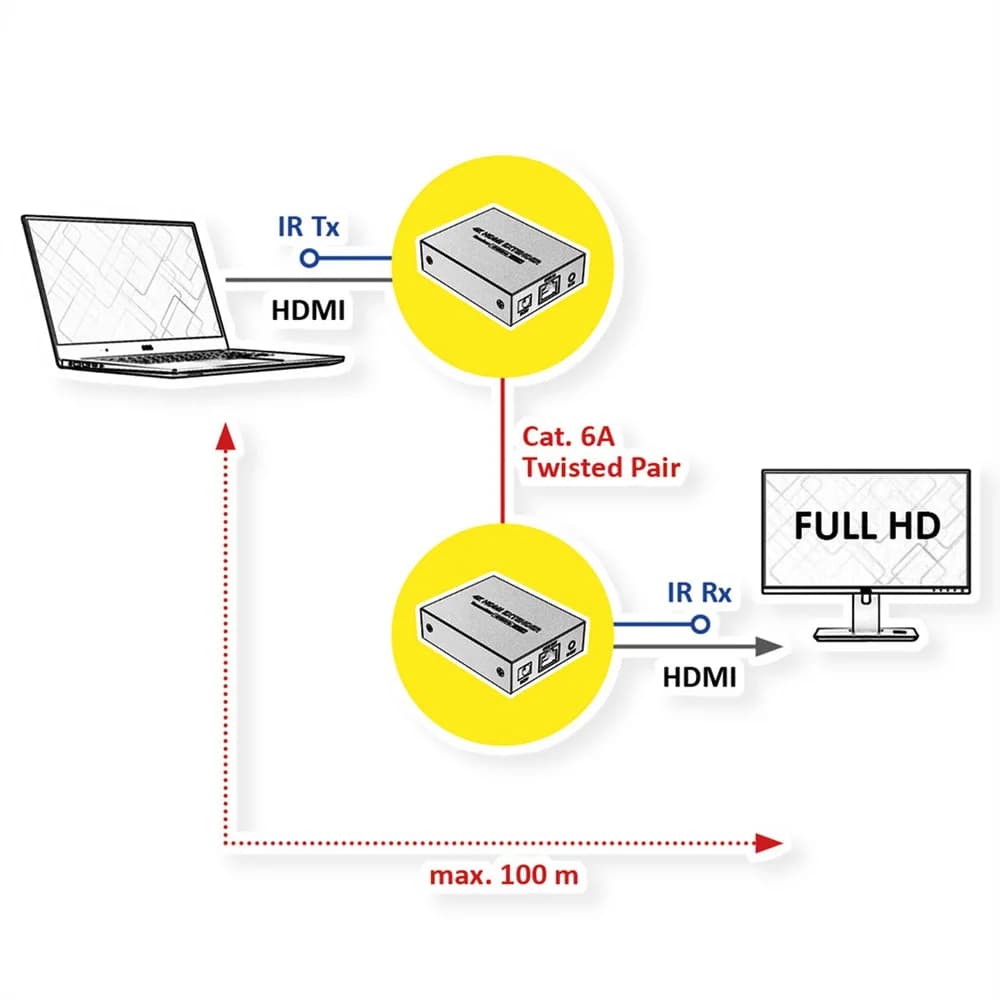

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with Full HD via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.
- Easily connect the transmitter and the receiver unit with a twisted pair cable with Cat5e or higher
- Max. distance is 120m
- Max. resolution is 1920x1080
- External infrared emitters - allow using the remote control of the source device
- Metal housing
- Dimensions (TX, RX each): 25 x 58 x 99 mm
- Weight: TX: 148g, RX: 143 g

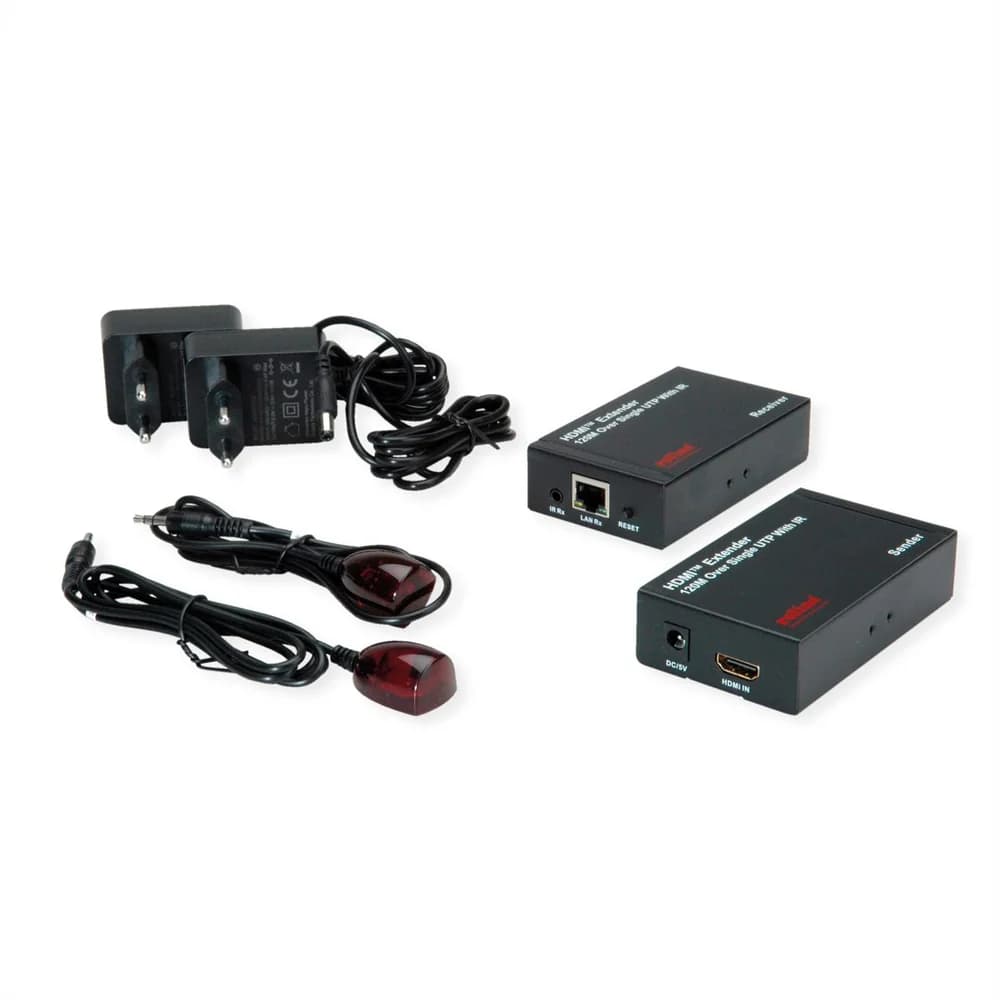

- Contents: 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapter, 4x Mounting Ears, 1x User Manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Video Extender
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapters, 4x Mounting Ears, 1x User Manual
- Interface
- HDMI
- Audio
- HDMI
- Inputs
- 1
- Outputs
- 1
- Max. distance
- 120 m
- Video input
- HDMI
- Audio input
- HDMI
- Video output
- HDMI
- Audio output
- HDMI
- Video band width
- 4.95 Gbps
- Max. resolution (nom.)
- 1920 x 1080
- Max. resolution
- 1920 x 1080 @60Hz (2K, Full HD)
- Dimensions (HxWxD)
- 25 x 58 x 99 mm
- Power supply unit
- 2x
- Power supply output
- DC 5V 2A
- Technical particularity
- External infrared emitters allow using the remote control of the source device
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -10 °C
- Storage temperature max.
- 80 °C
- Height
- 25 mm
- Width
- 58 mm
- Depth
- 99 mm
- Weight
- 291 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.75 kg
