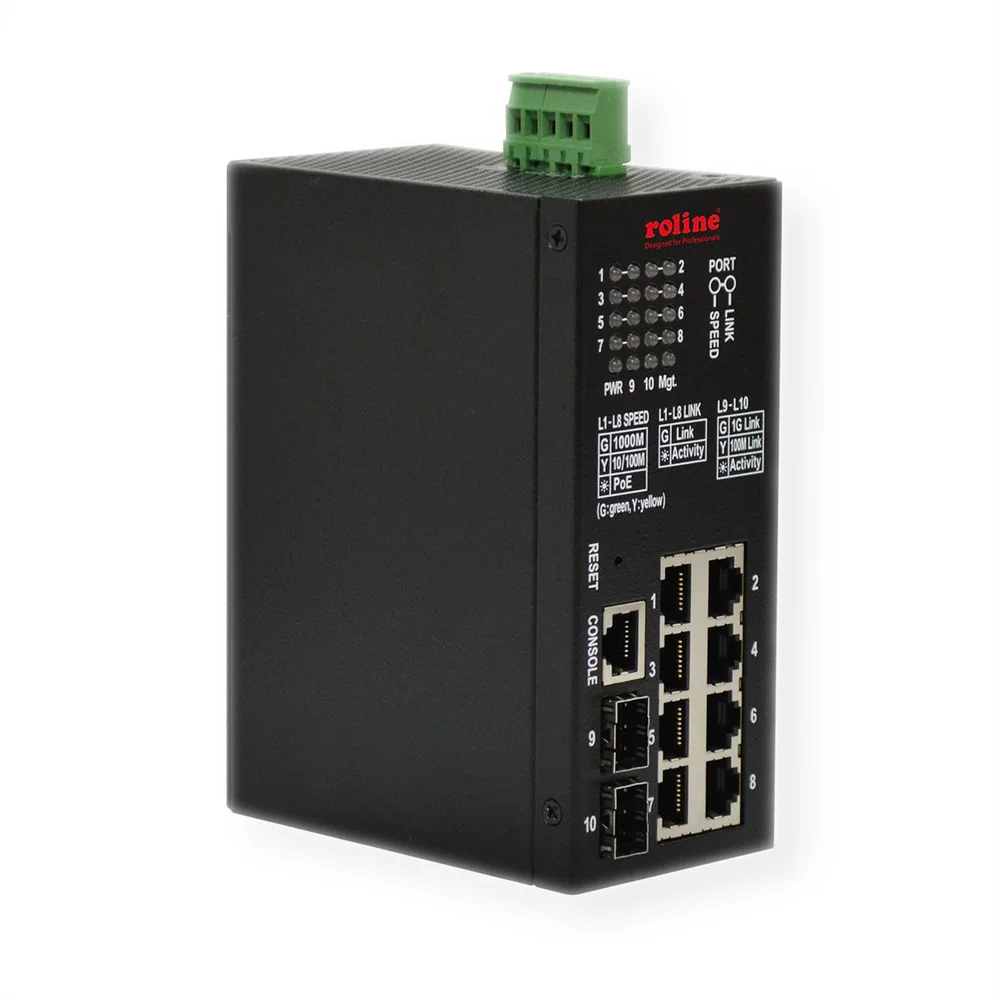

ROLINE Gigabit Switch 10-Port, (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed

Gigabit Switch with 8x 10/100/1000Mbps RJ-45 and two dual-speed SFP slots

• Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
• All copper ports support auto-negotiation and auto-MDI/MDI-X detection
• All copper ports are equipped with 802.3at-compliant PoE PSE
• Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
• Full wire speed forwarding
• Supports 802.3x flow control for full-duplex and backpressure for half-duplex
• Supports SFP with Digital Diagnostic Monitoring (DDM)
• Provides PoE PSE redundancy function
• Provides fiber optical power alarm function, Automatic Laser Shutdown function
• Power voltage DC 12V-30V

Management:

• HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
• DHCP/DHCPv6 client, DNS client, NTPv4
• IPv6 support, System Syslog, Configuration down/upload, Software upload
• private MIB for DDM monitoring, Remote boot, TFTP firmware update via SNMP

Security:

• NAS, 802.1X, MAC-based/Web/CLI authentication, IP MAC binding, TACACS+, IP source guard

Layer 2:

• QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
• Storm control for UC/MC/BC packets
• Static MAC configuration
• IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
• Multiple Spanning Tree – MSTP, RSTP, STP

Auto Multi-Ring (KAMR) Technology:

• Fast failover response time
• Auto recovery when failure is repaired
• Supports up to Five redundant rings
• Works with RSTP network
• Supports ring member status monitoring for up to 100 units

As a suitable power supply unit, we recommend the DIN rail power supply unit NDR-120-24 (21.13.1313).
