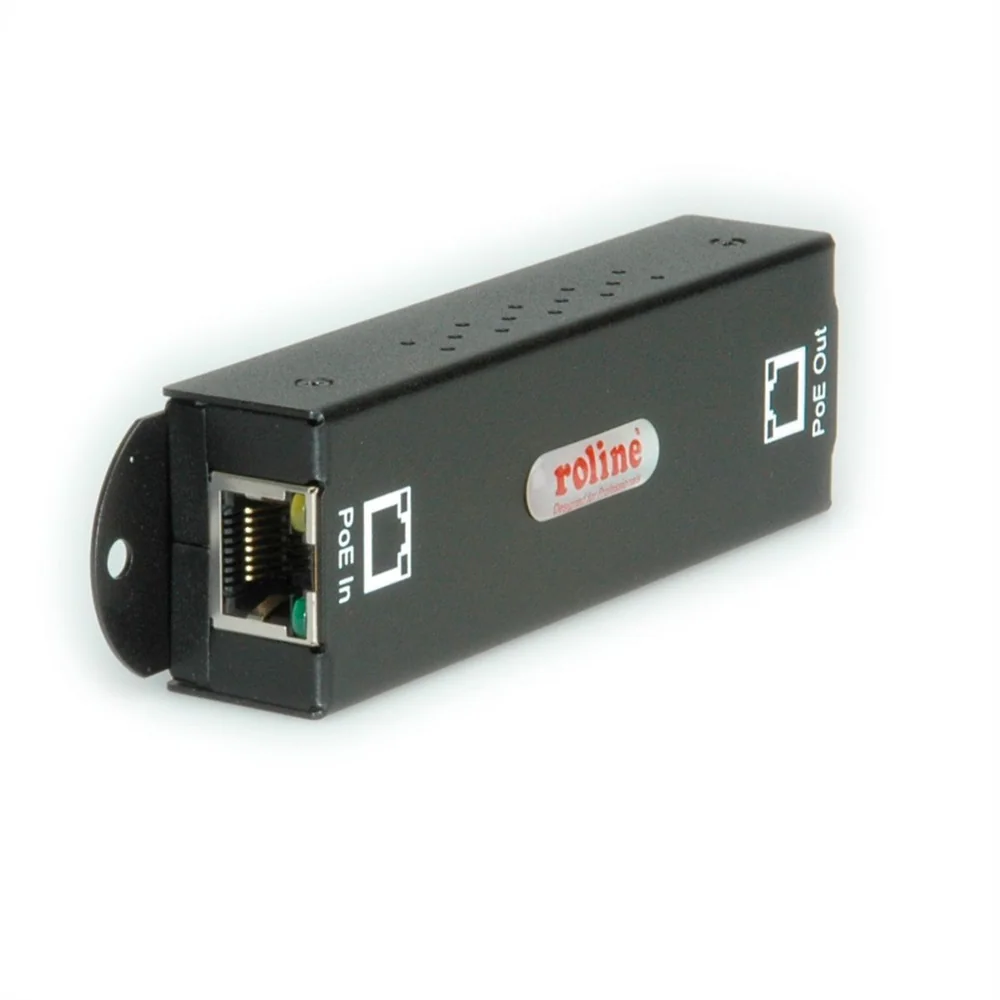

ROLINE Gigabit PoE+ Extender
- Item number
- 21.13.1188-12
- Part number
- 21.13.1188
- EAN
- 7611990924813
- Brand
- ROLINE
- Weight
- 100 g
Gigabit PoE extender designed for extending connection distance for another 100m on both ends via Cat-5e cable or better
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Gigabit PoE extender designed for extending connection distance for another 100m on both ends via Cat-5e cable or better
- For covering longer distances by cascading multiple PoE extender together on a network
- No need any additional power supply
- LAN cable to power IEEE 802.3at compliant network devices
- Features PoE awareness to verify whether the network device receives power is IEEE 802.3at compliant, or only the data will be sent through LAN cable
- No special networking cable required
- Input: 1x 10/100/1000 port for data and power
- Output: 1x 10/100/1000 port for data and power
- By adding PoE devices, it's possible to use an existing standard Cat-5e or Cat-6 Ethernet cable without a new electrical outlet for both power and data
- Supports PoE IEEE 802.3af/at
- Own power supply via PoE - consumption about 2W
- Weight: 100 g
- Dimensions (H x W x D): 20 × 32 × 123 mm
- Metal enclosure - Wall mounting possible
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Extender
- Colour
- black
- Scope of delivery
- Power over Ethernet extender
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 1
- Power over Ethernet (PoE)
- PoE+ (IEEE 802.3at)
- Quantity of PoE ports
- 1
- Max. PoE output power per port
- 30 W
- Max. PoE output power (total)
- 30 W
- Dimensions (HxWxD)
- 20 x 32 x 123mm
- Height
- 20 mm
- Width
- 32 mm
- Depth
- 123 mm
- Weight
- 0.1 kg
Packaging
- Height of packaging (single piece)
- 40 mm
- Width of packaging (single piece)
- 110 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.174 kg
