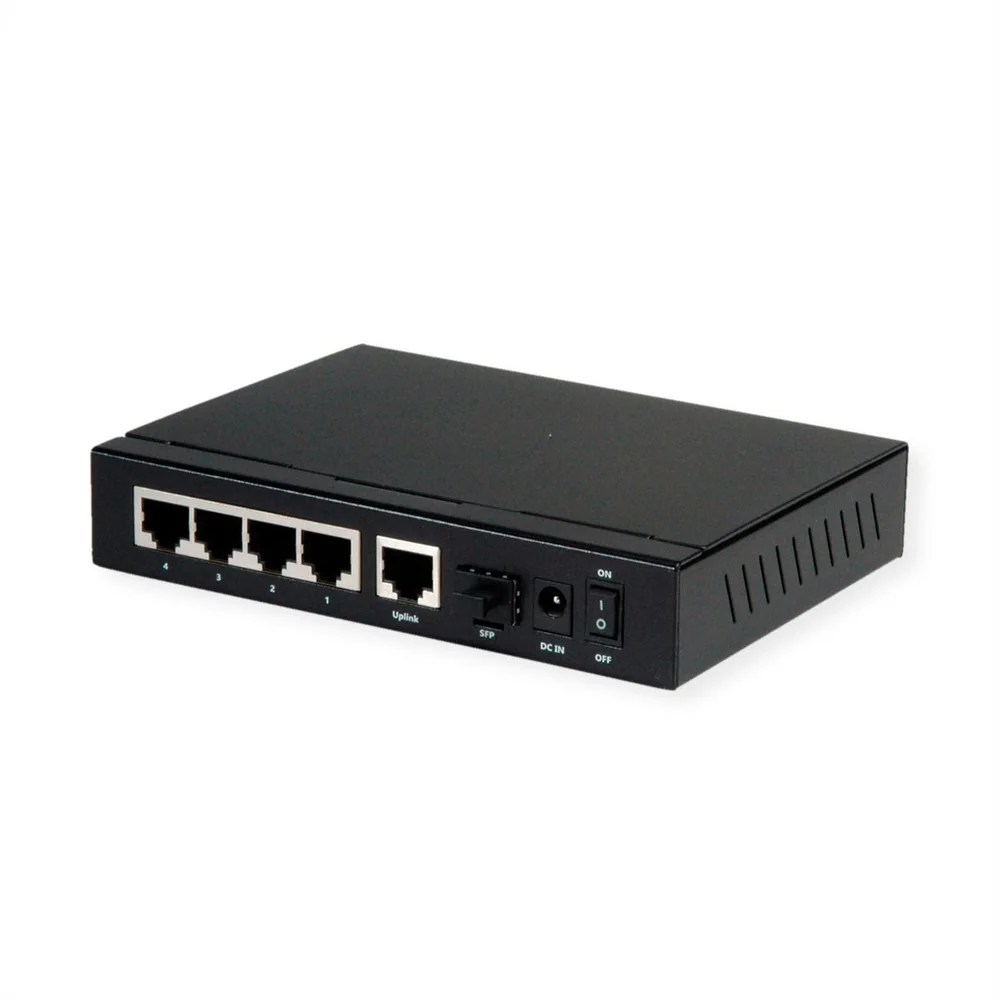

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP), 4x PoE+)
- Item number
- 21.14.3524-1
- Part number
- 21.14.3524
- EAN
- 7630049699106
- Brand
- ROLINE
- Weight
- 459 g
Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbit/s Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbit/s Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
- All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
- Supports full/half-duplex transfer mode for 10/100Mbps
- Supports full-duplex transfer mode for 1000Mbps
- Store-and-Forward switching method
- Wire-speed packet filtering and forwarding rate
- Supports IEEE 802.3x flow control
- 4x PoE Ports (IEEE 802.3at)
- Supports Jumbo Frame up to 9K Bytes
- MAC Address Table: 2K
- Buffer Memory: 128 kBytes
- LED Indication
- Environment Operating Temperature: 0°C ~ 40°C (main device)
- Dimensions (WxDxH): 147 x 106 x 28 mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network Switches
- Product type
- Network Switch
- Colour
- black
- Scope of delivery
- Switch, power supply (54V DC, 1.6A), manual
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 6
- Gigabit Ethernet Ports RJ-45
- 5
- Gigabit Ethernet Ports Fibre
- 1
- Power over Ethernet (PoE)
- PoE+ (IEEE 802.3at)
- Quantity of PoE ports
- 4
- Stackable
- no
- Dimensions (HxWxD)
- 147 x 106 x 28 mm
- Power supply
- External power supply unit
- Mains connection
- Appliance Europlug, Type-C
- Height
- 147 mm
- Width
- 106 mm
- Depth
- 28 mm
- Weight
- 459 g
Packaging
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 1.137 kg
