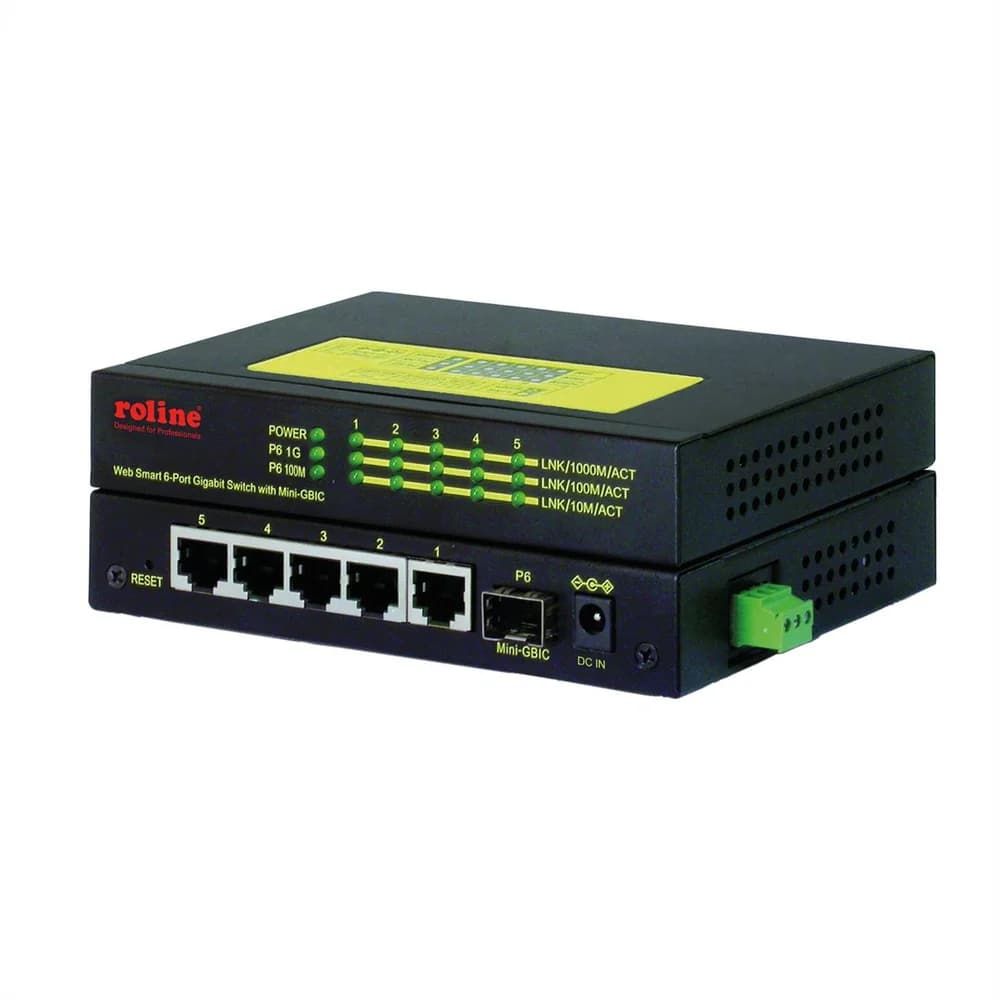

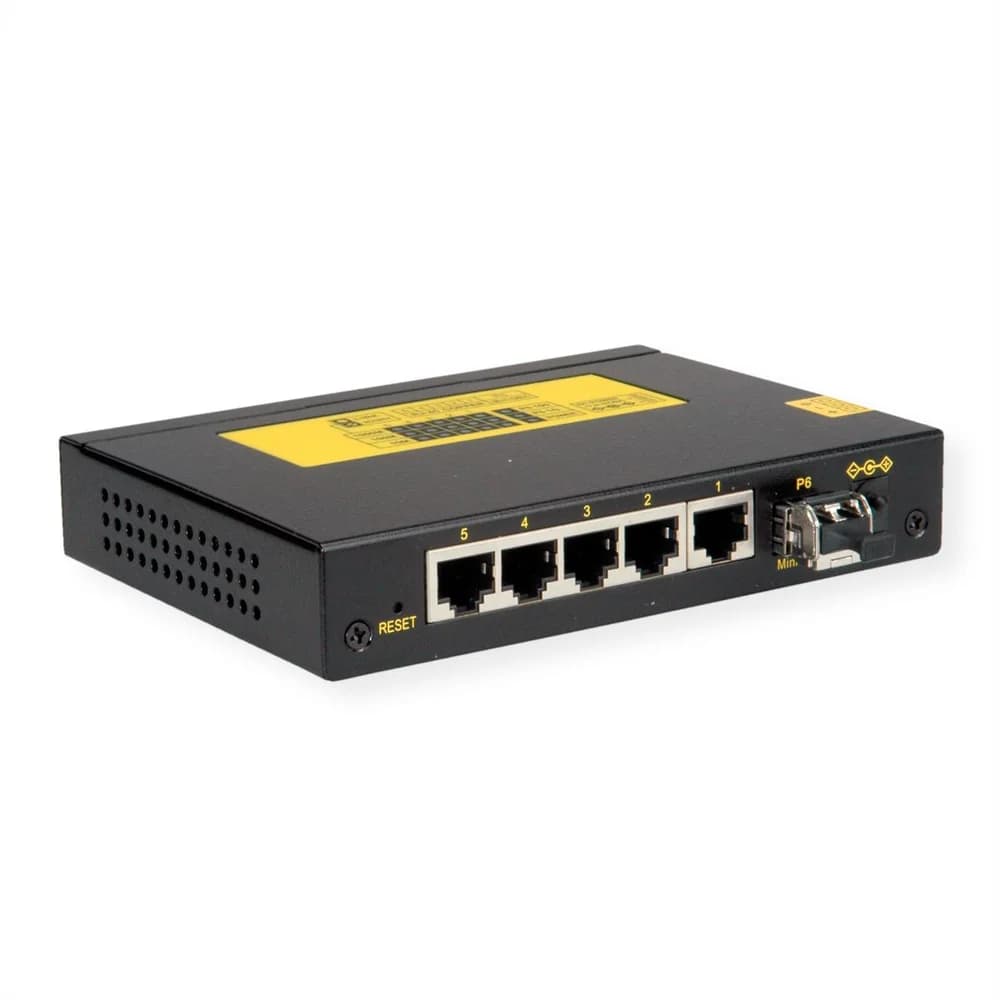

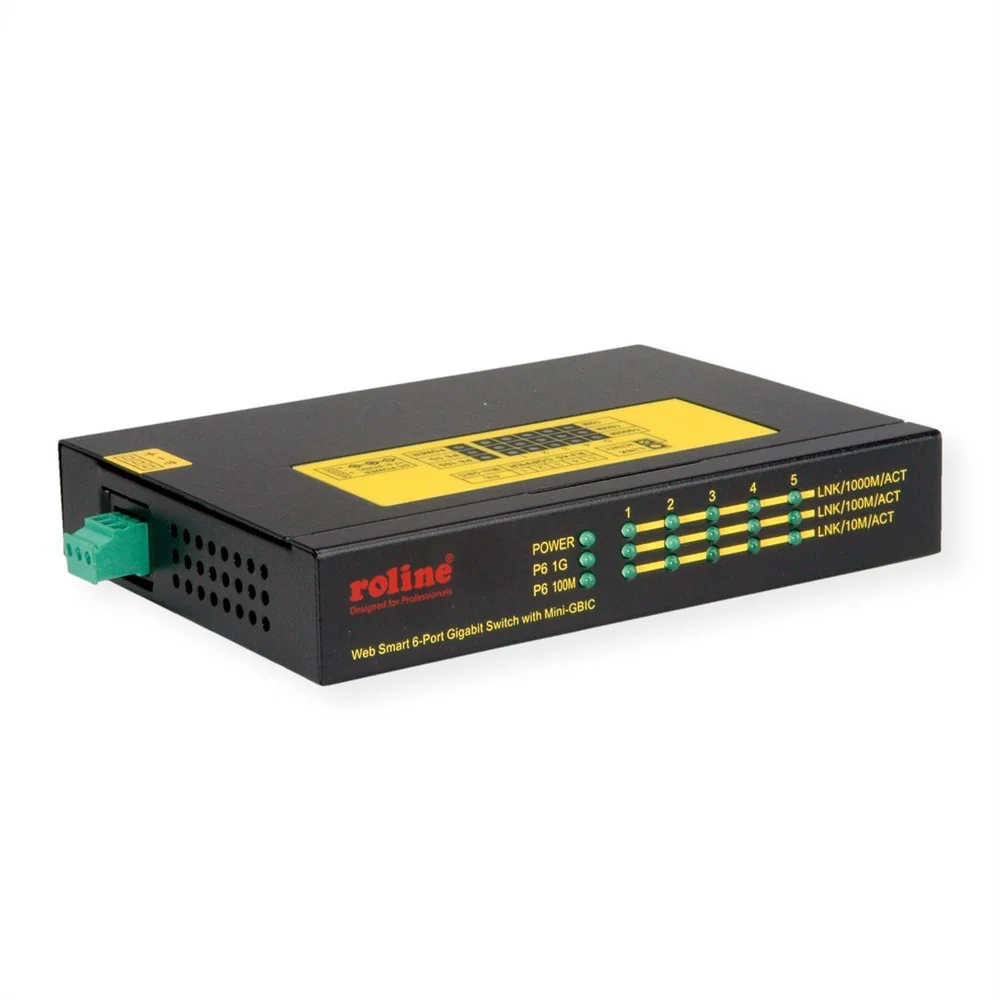

ROLINE Gigabit Ethernet Industrial Switch, 5x RJ45 + 1x SFP
- Item number
- 21.13.1162-1
- Part number
- 21.13.1162
- EAN
- 7611990138111
- Brand
- ROLINE
- Weight
- 443.2 g
5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!
- Provides 5x 10/100/1000Mbps copper ports + 1x dual SFP slot
- Auto-negotiation
- Auto MDI/MDI-X crossover function
- Provides in-band web-based management interface
- Supports IEEE 802.3x flow control for full duplex
- Supports back pressure flow control for half duplex
- Supports port-based and 802.1Q Tag-based VLAN
- Provides QoS function
- Provides 802.1x authentication
- Supports configuration backup and upload
- Provides port mirroring function
- Supports 802.1w RSTP
- Provides IGMP snooping
- MAC Address Table 8K entries
- Buffer Memory 136K bytes
- Operating Power: +7VDC to +57VDC
- DC Power Input Screwed Terminal Block: +7VDC - +57VDC
- DC IN Jack: -D 6.3mm/+D 2.0mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- black
- Scope of delivery
- 1x switch, 1x mounting bracket, 1x product CD-ROM
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 6
- Gigabit Ethernet Ports RJ-45
- 5
- Free slots for SFPs
- 1
- Mounting form
- DIN Rail
- Stackable
- no
- Dimensions (HxWxD)
- 26 x 104.5 x 144 mm
- Power supply
- External power supply unit
- Mains connection
- Loose cable / screw terminals
- Height
- 26 mm
- Width
- 104.5 mm
- Depth
- 144 mm
- Weight
- 443.2 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.8 kg
