21.15.9262-10
ROLINE FO SLIM Jumper Cable 50/125µm OM4, LC/LC, OD 1.2mm, LSOH, Slim, violet, 2 m
LC / LC · 2 m · violet

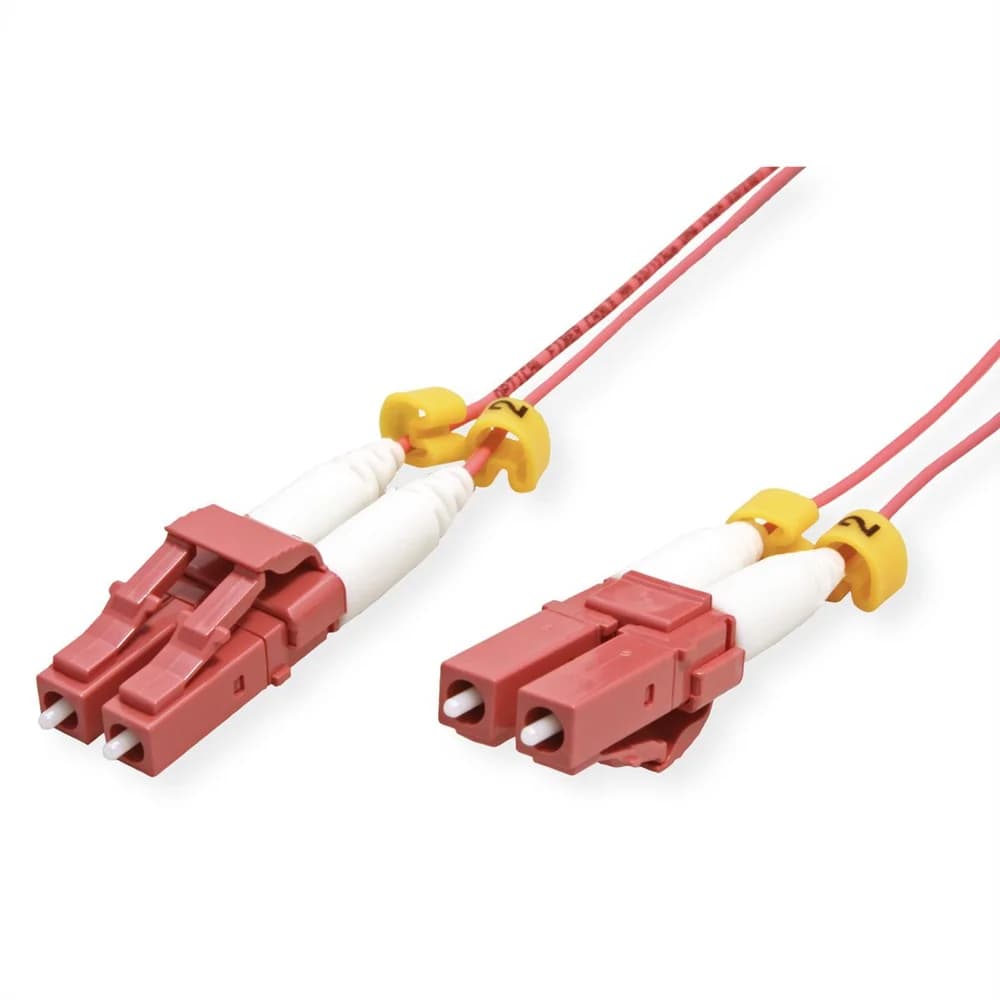

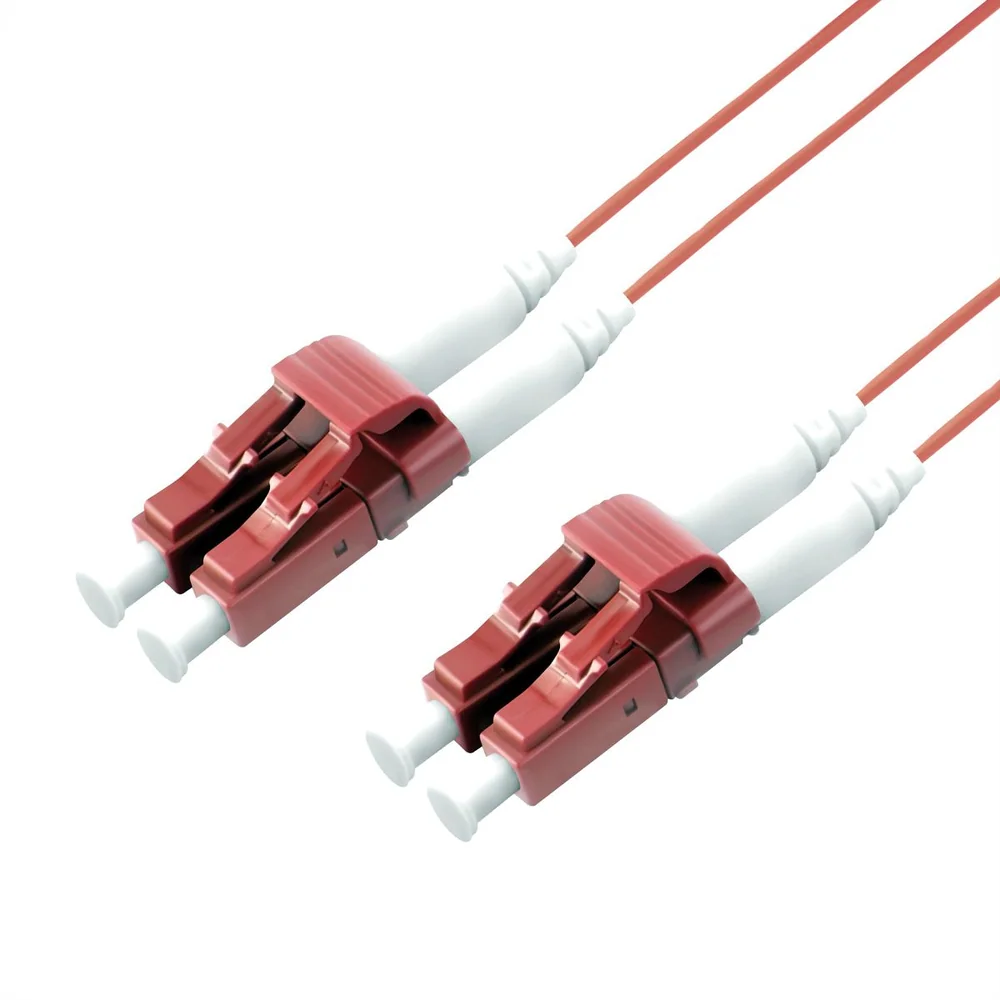

ROLINE FO SLIM Jumper Cable 50/125µm OM4, LC/LC, OD 1.2mm, LSOH, Slim, violet, 1 m
- Item number
- 21.15.9261-10
- Part number
- 21.15.9261
- EAN
- 7611990953295
- Brand
- ROLINE
- Weight
- 9.6 g
The solution for space problems in the fiber optic area of your data center! Extra-thin ROLINE fiber optic patch cables in OM4 quality for high-performance fiber optic cabling in high-density environments.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The solution for space problems in the fiber optic area of your data center!
Extra-thin ROLINE fiber optic patch cables in OM4 quality for high-performance fiber optic cabling in high-density environments.
The LC connector with its small cross-section allows high densities in the distribution area. And thanks to the extra-thin cable with a straight 1.2mm diameter, we now also have the appropriate supplement to this connector.- Security for the future! The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths of up to 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters - extends the system cost benefits to ultra long building backbones and medium length campus backbones.
- Material and clothing in ROLINE quality
- Outer diameter: 1.2 x 2.4mm
- UPC polish
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
- Duplex cables with fiber type Multi-mode 50/125µm, OM4
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM4
- Colour
- violet
- Length
- 1 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM4
- Connection ports
- LC / LC
- Side 1 Connector Type
- LC
- Side 2 Connector Type
- LC
- Min. Bending radius, static
- 12 mm
- Min. Bending radius, dynamic
- 24 mm
- Colour (Cable)
- violet
- Aramid strain relief
- yes
- External cable diameter
- 1.2 x 2.4 mm
- Mantle of external cable
- LS0H
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.3 dB
- Min. return loss
- 30 dB
- RAL colour
- RAL 4003 Heather violet
- Weight
- 9.6 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 60 mm
- Package weight (single piece)
- 0.1 kg
