21.15.9490-10
ROLINE FO Jumper Cable Duplex, 50/125µm OM4, LSH/LSH, UPC Polish, LSOH, violet, 0.5 m
LSH / LSH · 0.5 m · violet

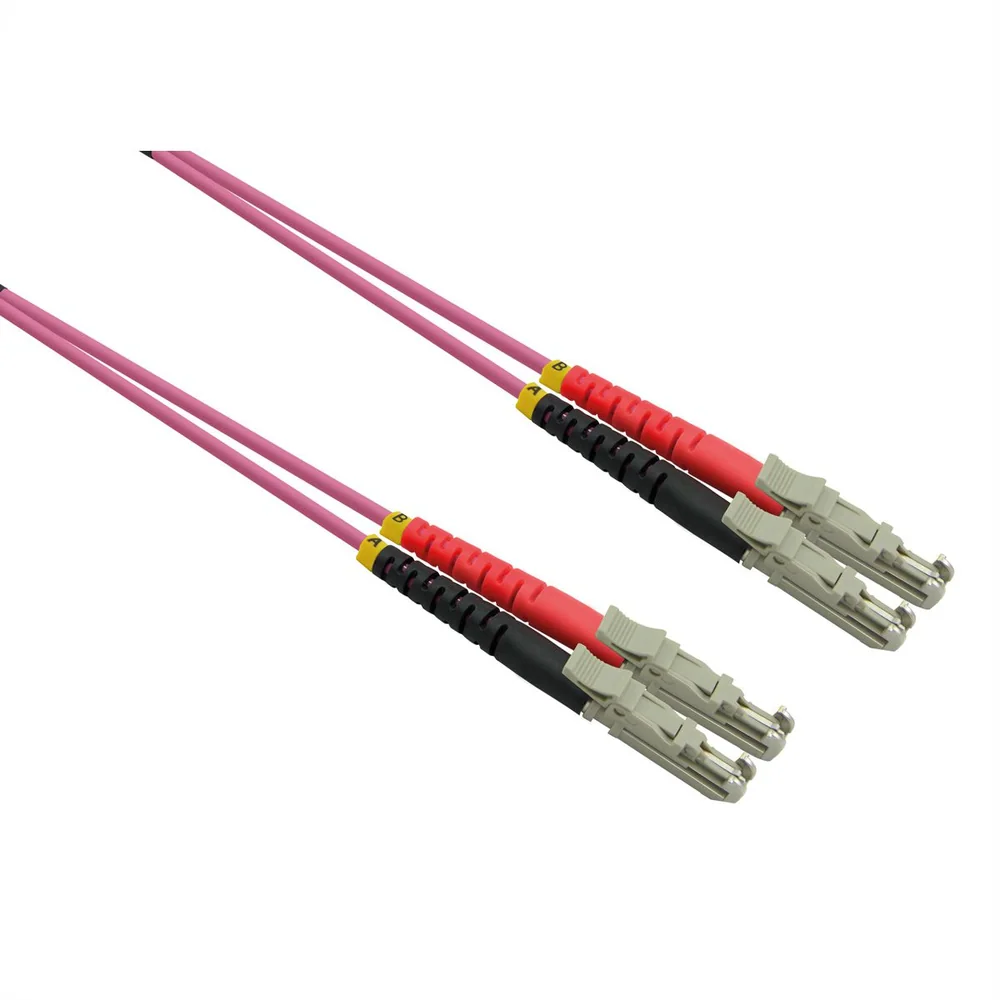

ROLINE FO Jumper Cable Duplex, 50/125µm OM4, LSH/LSH, UPC Polish, LSOH, violet, 2 m
- Item number
- 21.15.9492-10
- Part number
- 21.15.9492
- EAN
- 7611990952847
- Brand
- ROLINE
- Weight
- 42.5 g
High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are UPC polished.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are UPC polished.
- Duplex cable with 50/125µm OM4 fibre type
- Cable material: sheath halogen-free and flame-retardant, violet, solid core with aramid strain relief
- LSH connector: precisely manufactured connector with low return loss, ceramic ferrule, beige
- The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
- UPC Polish (Ultra Physical Contact)
- IL < 0.25dB, RL > 25dB
- IL (typical) < 0.12dB
- Cable OD (outer diameter): 3.0 x 6.0mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM4
- Colour
- violet
- Length
- 2 m
- Quantity of fibre
- 2
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM4
- Connection ports
- LSH / LSH
- Side 1 Connector Type
- LSH
- Side 2 Connector Type
- LSH
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Aramid strain relief
- yes
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.2 dB
- Min. return loss
- 30 dB
- RAL colour
- RAL 4003 Heather violet
- Weight
- 42.5 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.074 kg
