21.15.8820-5

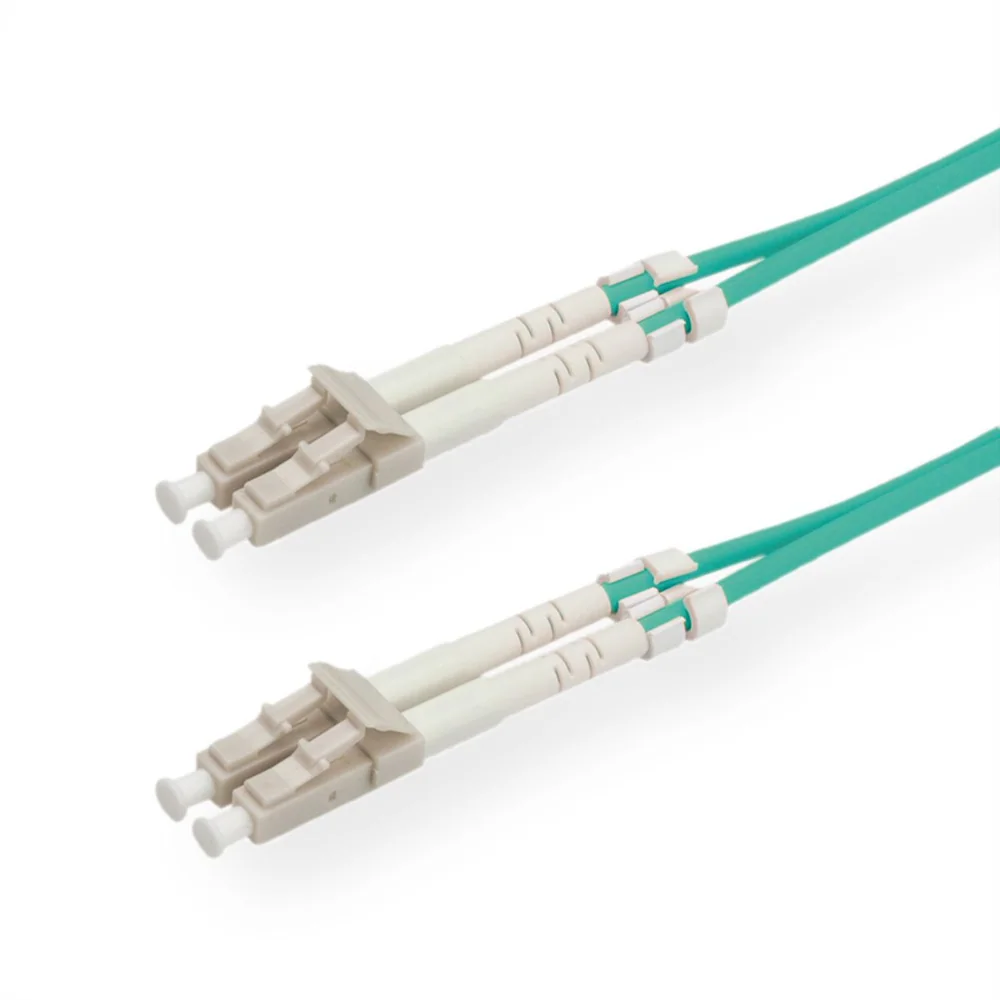

ROLINE FO Jumper Cable 50/125µm OM3, LC/LC, Low-Loss-Connector, turquoise, 0.5 m
LC / LC · 0.5 m · turquoise
ROLINE FO Jumper Cable 50/125µm OM3, LC/LC, Low-Loss-Connector, turquoise, 3 m
- Item number
- 21.15.8823-5
- Part number
- 21.15.8823
- EAN
- 7611990919994
- Brand
- ROLINE
- Weight
- 24.8 g
Fiberoptic LC/LC patchc. 50µm, Fiberoptic, LC, LC, patchc., 50µm, low loss, Low-Loss, OM3, Fiber, Optic, Fibre, F.O. Patchcable, Fiber patchcable, om3, fibre patchcable, glass cable, Fiber network cable
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Fiberoptic LC/LC patchc. 50µm, Fiberoptic, LC, LC, patchc., 50µm, low loss, Low-Loss, OM3, Fiber, Optic, Fibre, F.O. Patchcable, Fiber patchcable, om3, fibre patchcable, glass cable, Fiber network cable
- Security for the future! The OM3 fiber and connector quality with very low insertion loss ensure an excellent quality at very high bandwidths.
- Material and assembly in ROLINE quality
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a low-loss LC connector: 0.15 dB
- Duplex cables with fiber type Multi-mode 50/125µm, OM3
- Color: turquoise
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM3
- Colour
- turquoise
- Length
- 3 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM3
- Connection ports
- LC / LC
- Side 1 Connector Type
- LC
- Side 2 Connector Type
- LC
- Colour (Cable)
- turquoise
- Aramid strain relief
- yes
- External cable diameter
- 2.8x6 mm
- Mantle of external cable
- LS0H
- Cable LSOH
- yes
- Max. insertion loss
- 0.15 dB
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 80 °C
- Weight
- 24.8 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 290 mm
- Package weight (single piece)
- 0.05 kg
