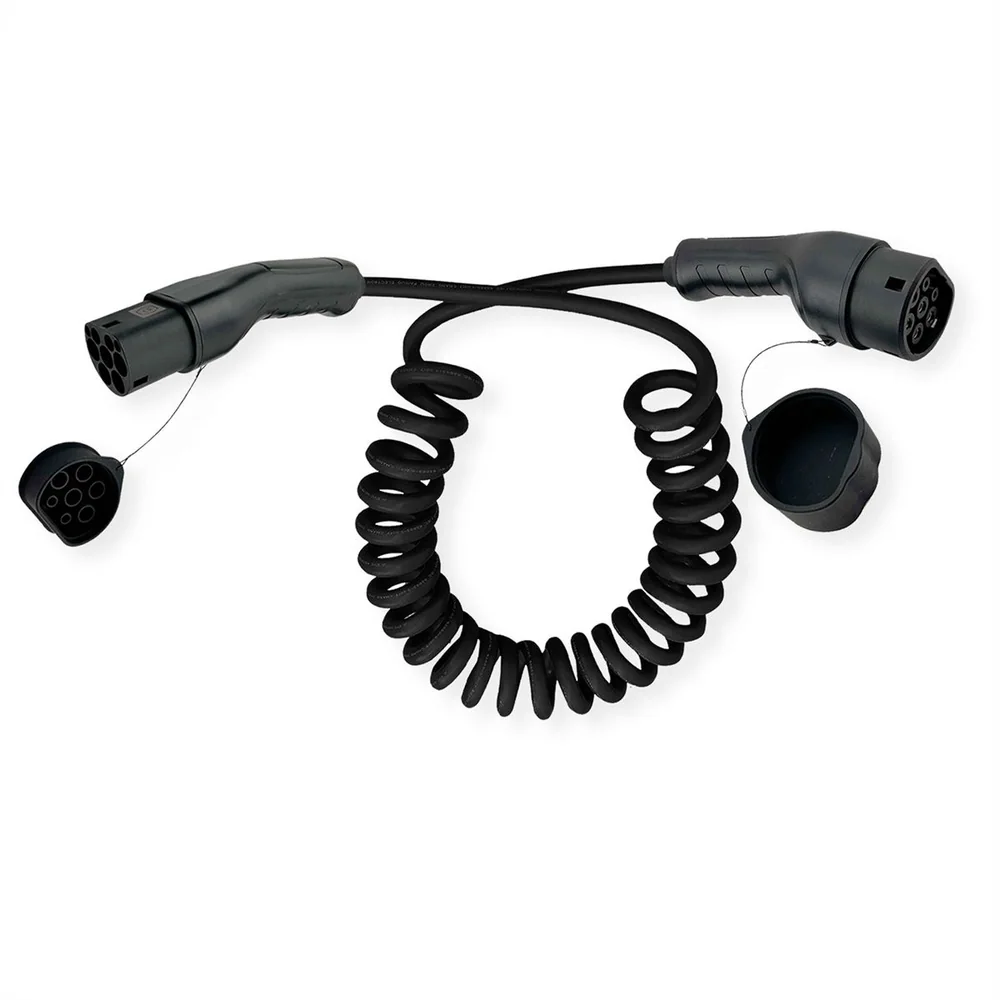

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, spiral (max. 5m)
- Item number
- 19.08.0057-3
- Part number
- 19.08.0057
- EAN
- 7630049688230
- Brand
- ROLINE
- Weight
- 2600 g
Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC
- Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
- Suitable for charging electric and hybrid vehicles
- Mode 3 / Type 2 car charging cable
- Connections: Type 2 on both sides
- For all electric cars with type 2 connection
- Ergonomically shaped plug and coupler
- Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)
- Spiral, max. usable length 5 m
- 32 A / 3- phase (480 VAC)
- Max. Charging power: 22 kW
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Power Cables
- Product type
- Electric car charging cable
- Colour
- black
- Length
- 7.5 m
- Scope of delivery
- E-car charging cable, carrying bag
- Charging power
- 22 kW
- Current
- 32 A
- Number of phases
- 3-phase
- Supported charging technology
- Mode-3
- Side 1 Connector Type
- IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
- Side 2 Connector Gender
- Female
- Cable LSOH
- flame retardant
- Protection class (IP Code)
- IP65 IP54
- Technical particularity
- spiral, max. usable length 5 m
- Mains connection
- IEC 62196-2 Type 2 plug, 3Ph.
- Operating temperature min.
- -30 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 85 °C
- Height
- 40 mm
- Width
- 390 mm
- Depth
- 390 mm
- Weight
- 2.6 kg
Packaging
- Height of packaging (single piece)
- 120 mm
- Width of packaging (single piece)
- 380 mm
- Depth of packaging (single piece)
- 380 mm
- Package weight (single piece)
- 5 kg
