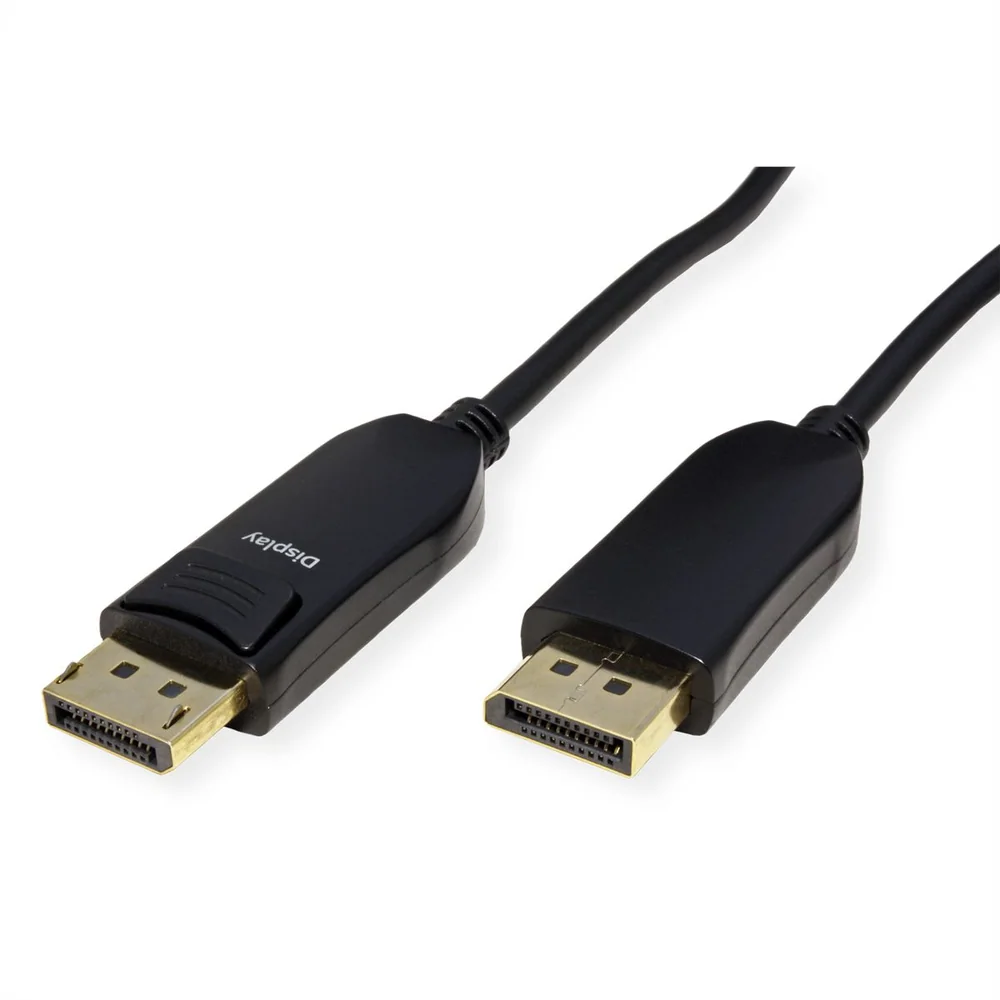

ROLINE DisplayPort Cable (AOC), v2.1, 10K@60Hz, 54Gbit/s, UHBR13.5, DP-DP, M/M, 50 m
- Item number
- 14.01.3504-1
- Part number
- 14.01.3504
- EAN
- 7630049634732
- Brand
- ROLINE
- Weight
- 1331 g
ROLINE DisplayPort AOC Cable with DP connection on both sides for connecting an Ultrabook, Notebook/Laptop or PC to a monitor, TV or projector - for screen transmissions in excellent quality with resolutions of up to…
Description

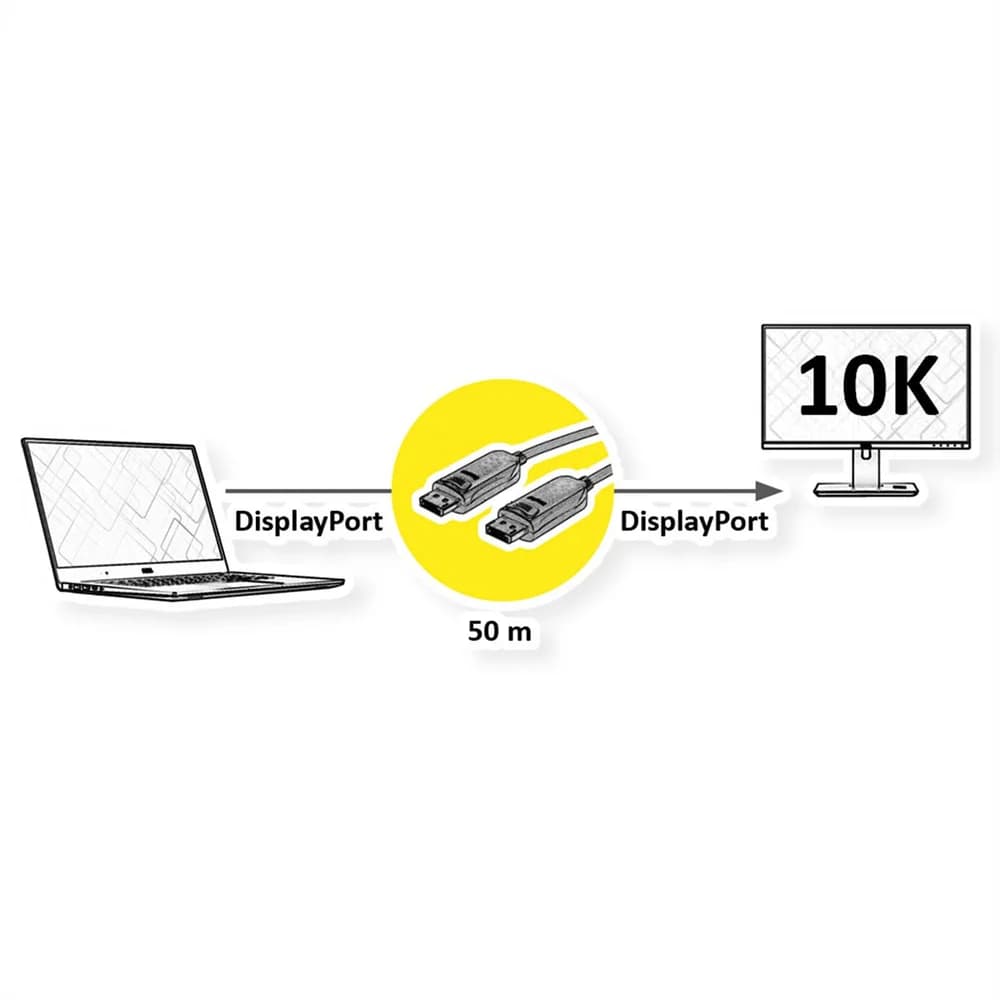

ROLINE DisplayPort AOC Cable with DP connection on both sides for connecting an Ultrabook, Notebook/Laptop or PC to a monitor, TV or projector - for screen transmissions in excellent quality with resolutions of up to 10240x4320 @60Hz!
- Total length of the end device distance (e. g. from notebook/laptop to beamer or PC to monitor): 50 meters
- No external power supply required; the cable contains a copper fibre for power supply
- Small connector and cable dimensions; the cable has a smaller diameter than comparable cables made of pure copper due to the glass fibres.
- The practical plug design prevents the cable from slipping out of the DisplayPort socket.
- Outer diameter: 4.8±0.2mm
- Compliant DP v2.1 (max. 10240 x 4320 @60Hz)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Audio / video cable
- Product type
- DisplayPort extension
- Colour
- black
- Length
- 50 m
- Scope of delivery
- AOC Cable
- Transfer quality
- DisplayPort v2.1
- Max. resolution
- 10240 x 4320 @60Hz (10K)
- Side 1 Connector Type
- DisplayPort
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- DisplayPort
- Side 2 Connector Gender
- Male
- Colour (Cable)
- black
- Area of application
- External
- Material (external cable mantle)
- PVC
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 70 °C
- Weight
- 1331 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 210 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.3 kg
