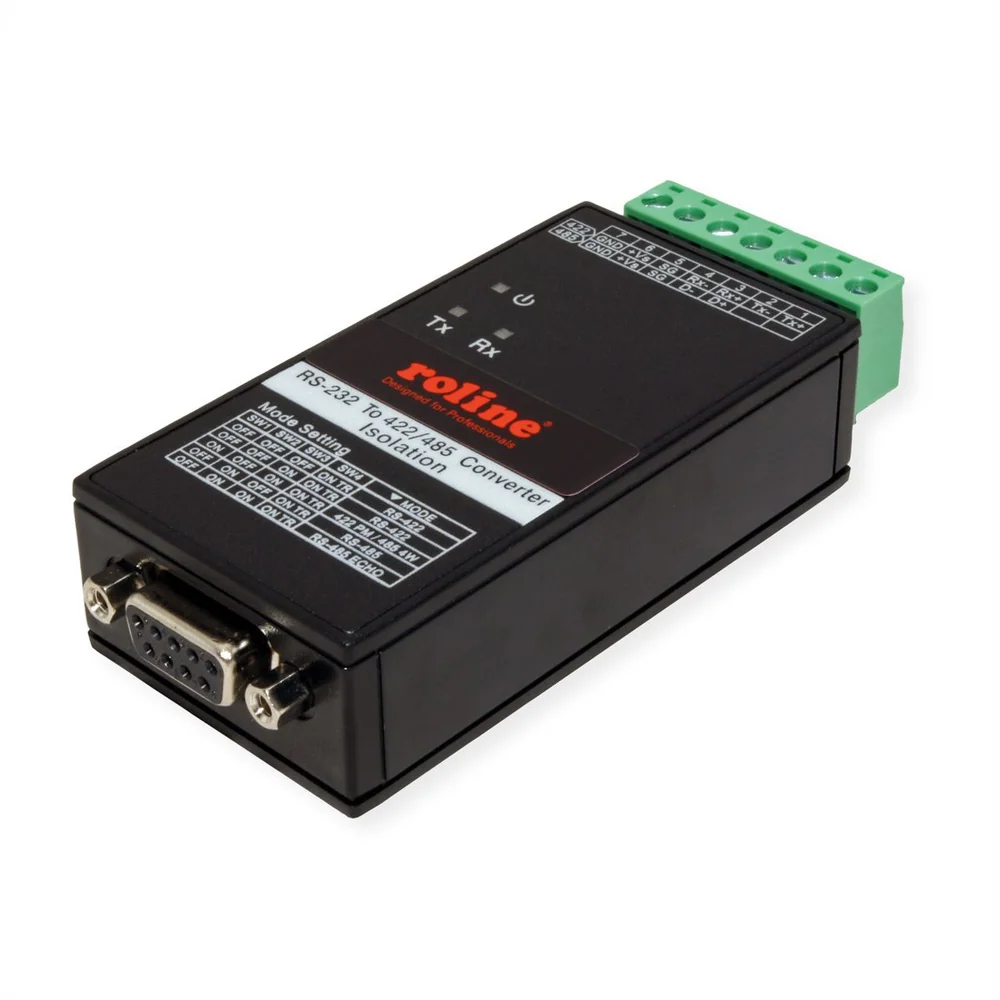

ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail

Item number: 12.02.1005-4
Part number: 12.02.1005
EAN: 7611990994854
Brand: ROLINE
Weight: 65.7 g

Converts RS-232 signals to RS-422 or RS-485 Fully compliant with PC serial COM ports Isolation 3000 VDC (optical) Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block Auto toggling by hardware Data transfer…

This product is not sold online — send an enquiry and we will reply with price and lead time.

Compare

Description

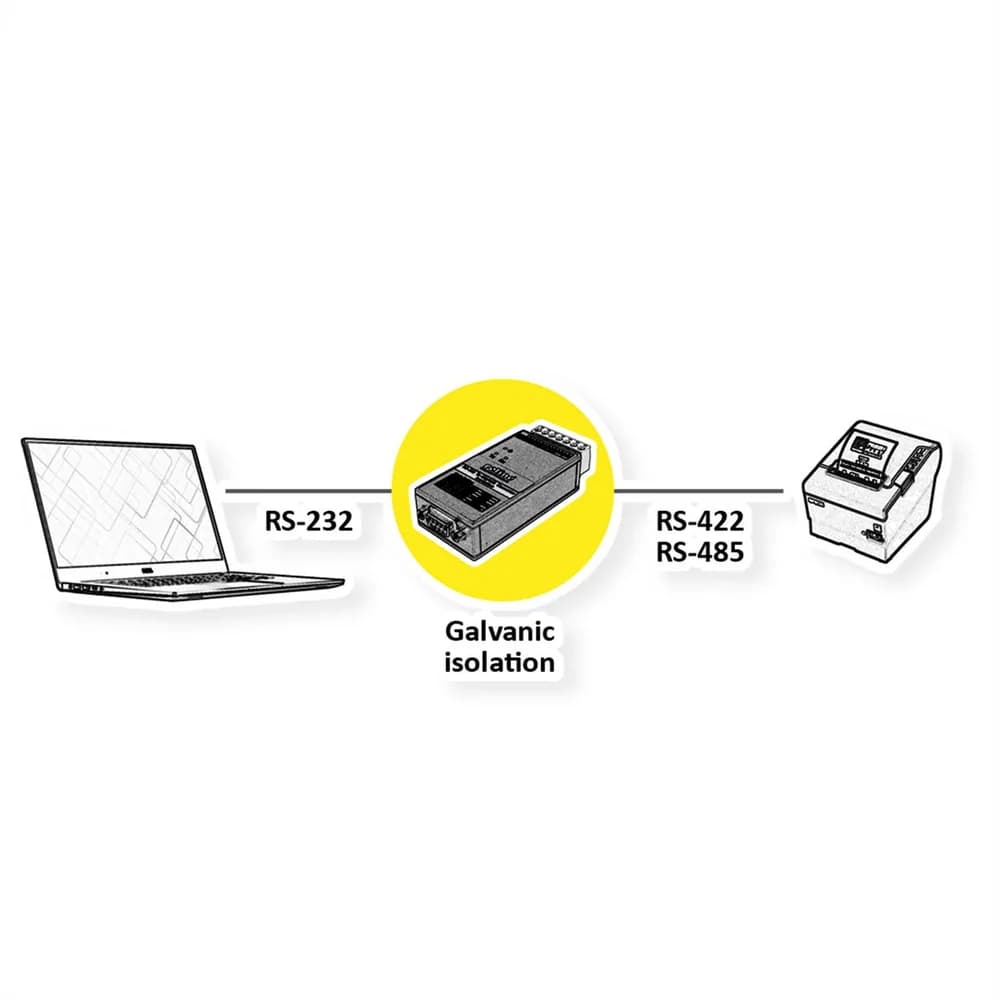

Converts RS-232 signals to RS-422 or RS-485
Fully compliant with PC serial COM ports
Isolation 3000 VDC (optical)

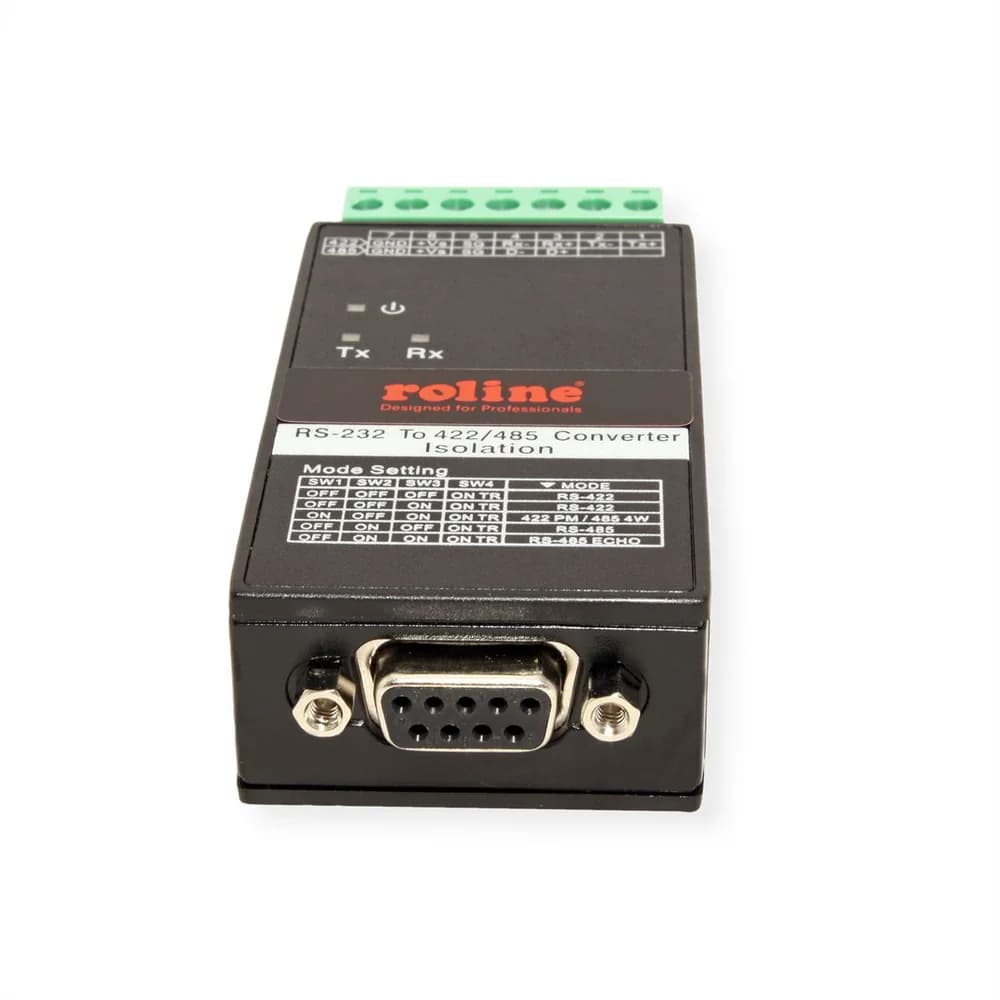

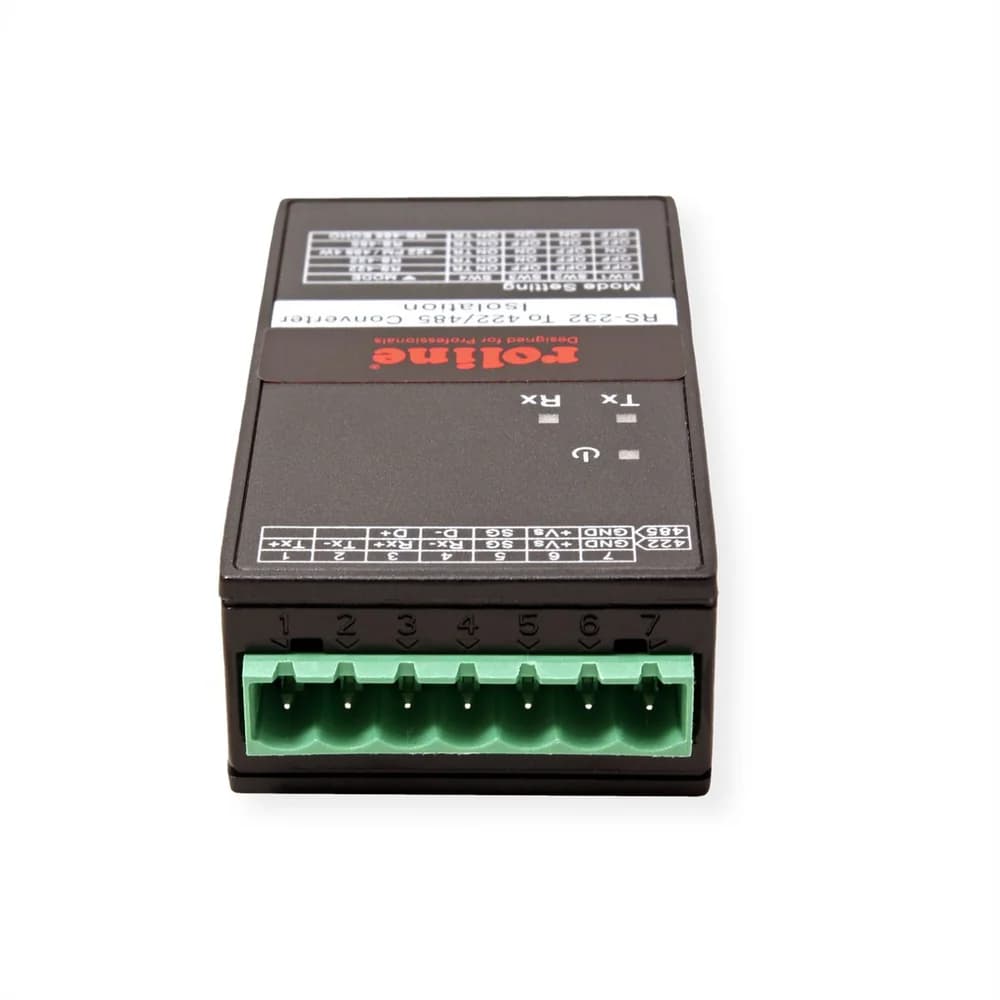

Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
Auto toggling by hardware
Data transfer rate of up to 115.2 Kbit/s
Terminal resistance and Echo mode

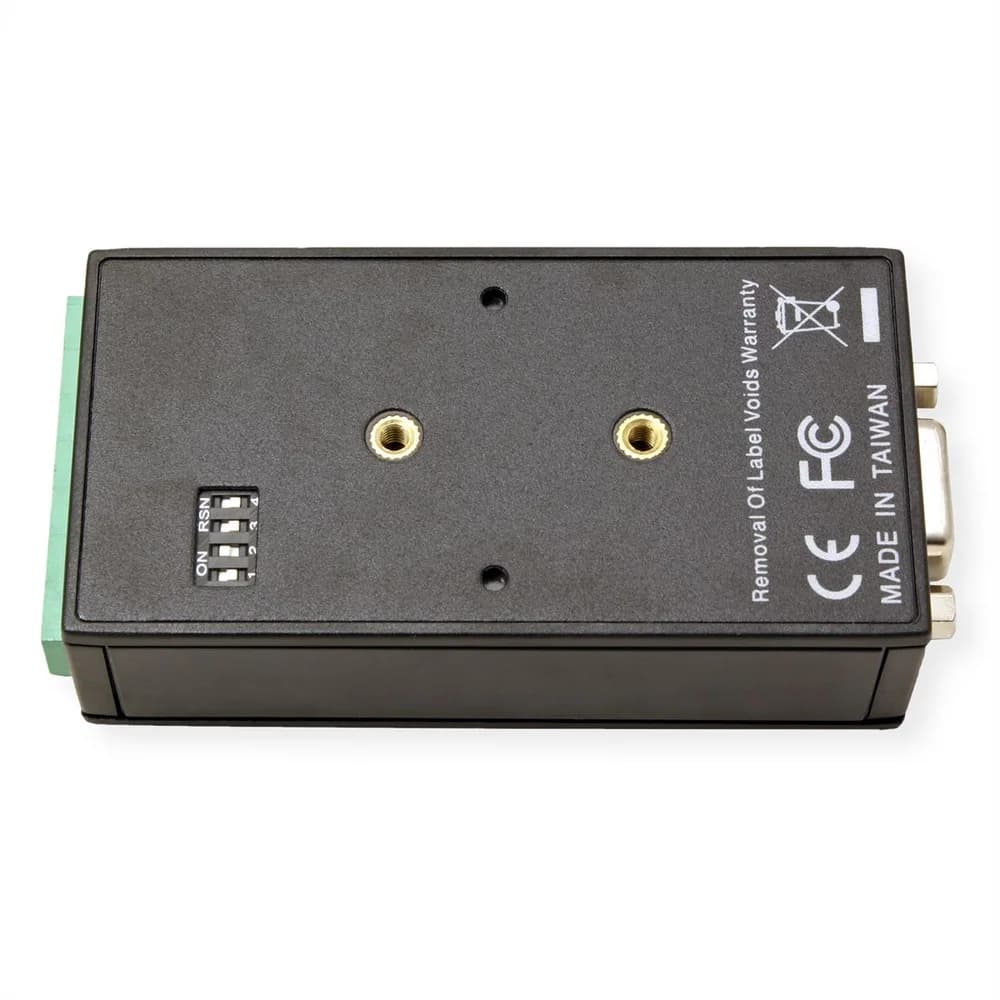

DIP switches for terminal settings
Signals: TXD, RXD, RTS, CTS, GND for RS-232
Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
Status LEDs
Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11

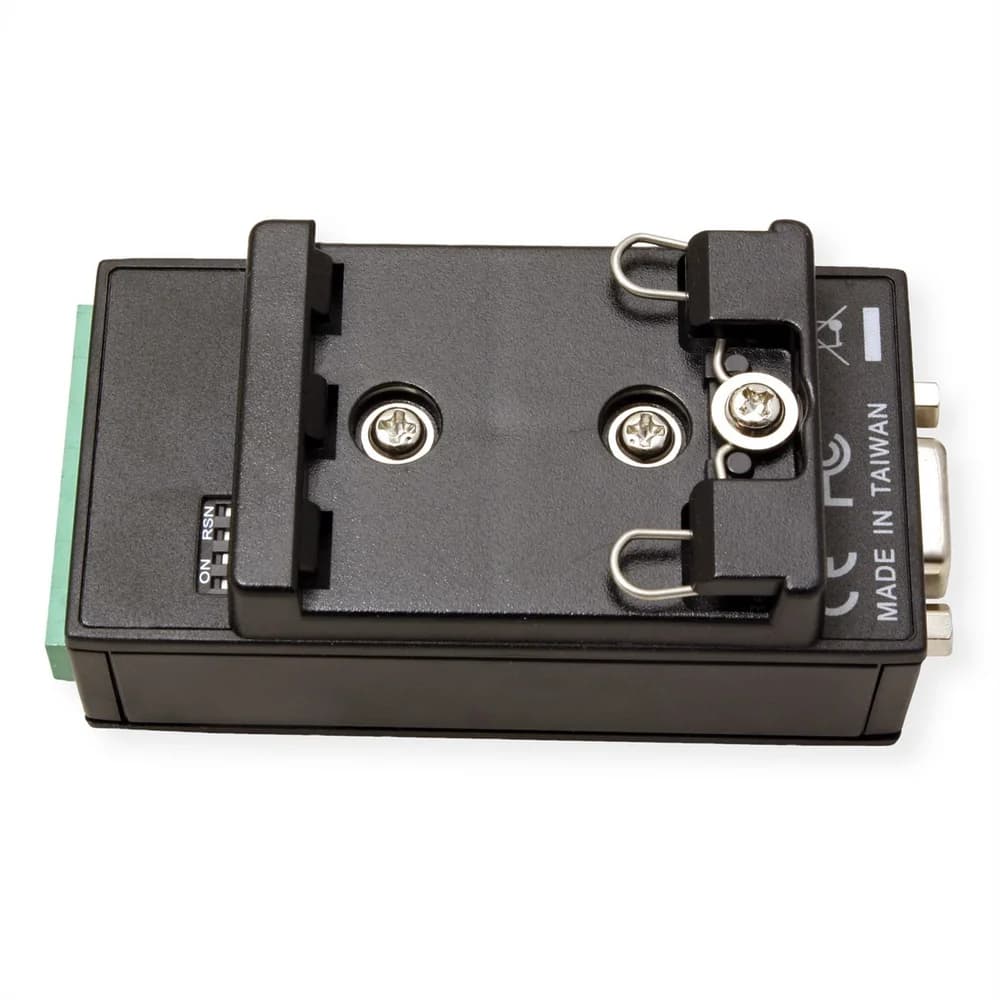

For DIN rail mounting
DC power supply 10~30 V (built-in surge protector)
Hardware solution, no software required

Environmental Limits:
Operating Temperature: -30 ~ 75°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 ~ 95% Non-Condensing

Specifications

Product

Manufacturer: ROLINE
Product group: Adapters, Terminators, Converters
Product type: Serial interface converter
Colour: black
Scope of delivery: converter, manual
Side 1 connection (PC): RS232
Side 2 connection (Peripherals): Terminal block
Side 1 Connector Type: D-Sub 9-pin (DE-9)
Side 1 Connector Gender: Female
Side 2 Connector Type: Terminal block
Side 2 Connector Gender: Female
Conversion direction: RS422/RS485- RS232
Area of application: External
Height: 22 mm
Width: 42 mm
Depth: 97.2 mm
Weight: 65.7 g

Packaging

Height of packaging (single piece): 45 mm
Width of packaging (single piece): 140 mm
Depth of packaging (single piece): 190 mm
Package weight (single piece): 0.16 kg
