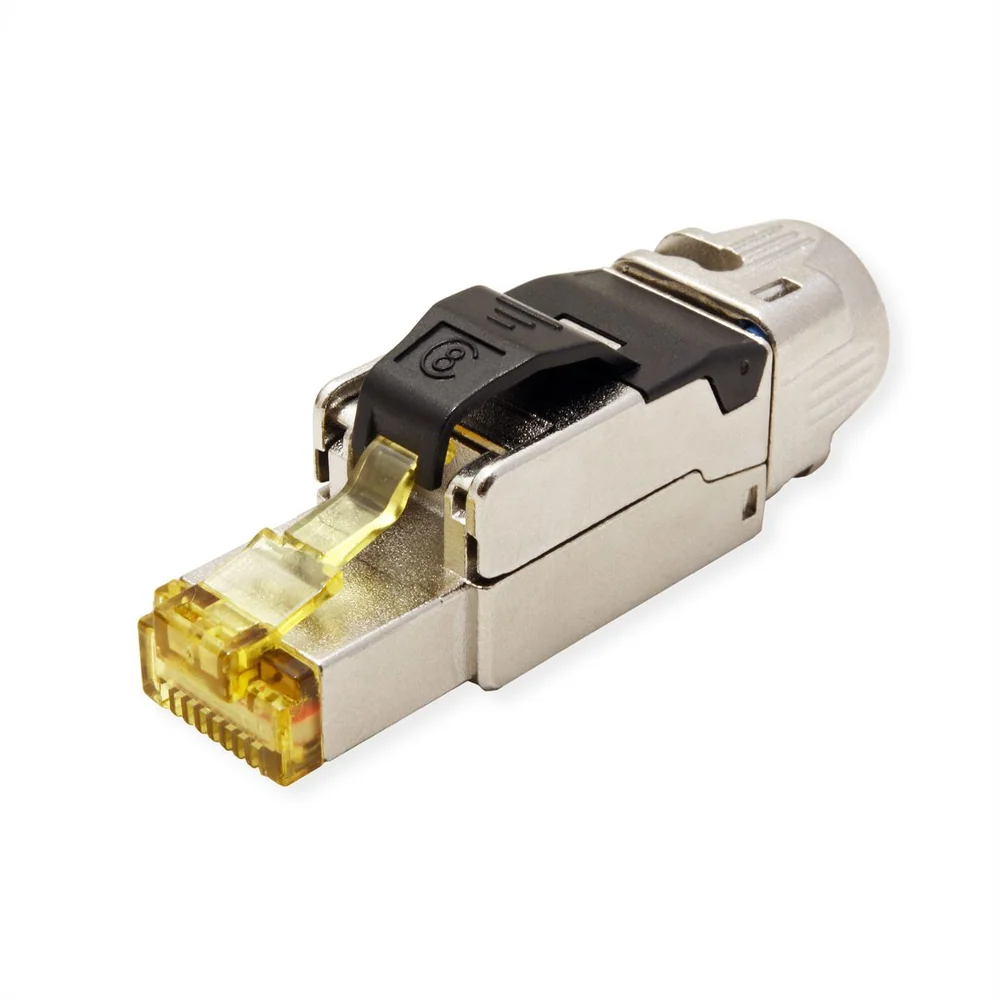

ROLINE Cat.8 (Class I) Field Connector Plug RJ45
- Item number
- 21.17.3086-50
- Part number
- 21.17.3086
- EAN
- 7630049691001
- Brand
- ROLINE
- Weight
- 19.7 g
Full shielded with zinc alloy housing T568A & T568B wiring C8 channel performance vertified Cable wire gauge : 22AWG to 26AWG Cable outer diameter : 7.0 to 8.5mm Suitable for the PoE plus (IEEE 802.3at) applications…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Full shielded with zinc alloy housing
- T568A & T568B wiring
- C8 channel performance vertified
- Cable wire gauge : 22AWG to 26AWG
- Cable outer diameter : 7.0 to 8.5mm
- Suitable for the PoE plus (IEEE 802.3at) applications
- Easy, quick and reliable installation
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Scope of delivery
- 1x plug
- Shield type
- Screened
- Transfer quality
- Cat8.1 / Class I
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- separate strain relief
- yes
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 18.4 mm
- Width
- 13.8 mm
- Depth
- 50.2 mm
- Weight
- 19.7 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 50 mm
- Package weight (single piece)
- 0.02 kg
