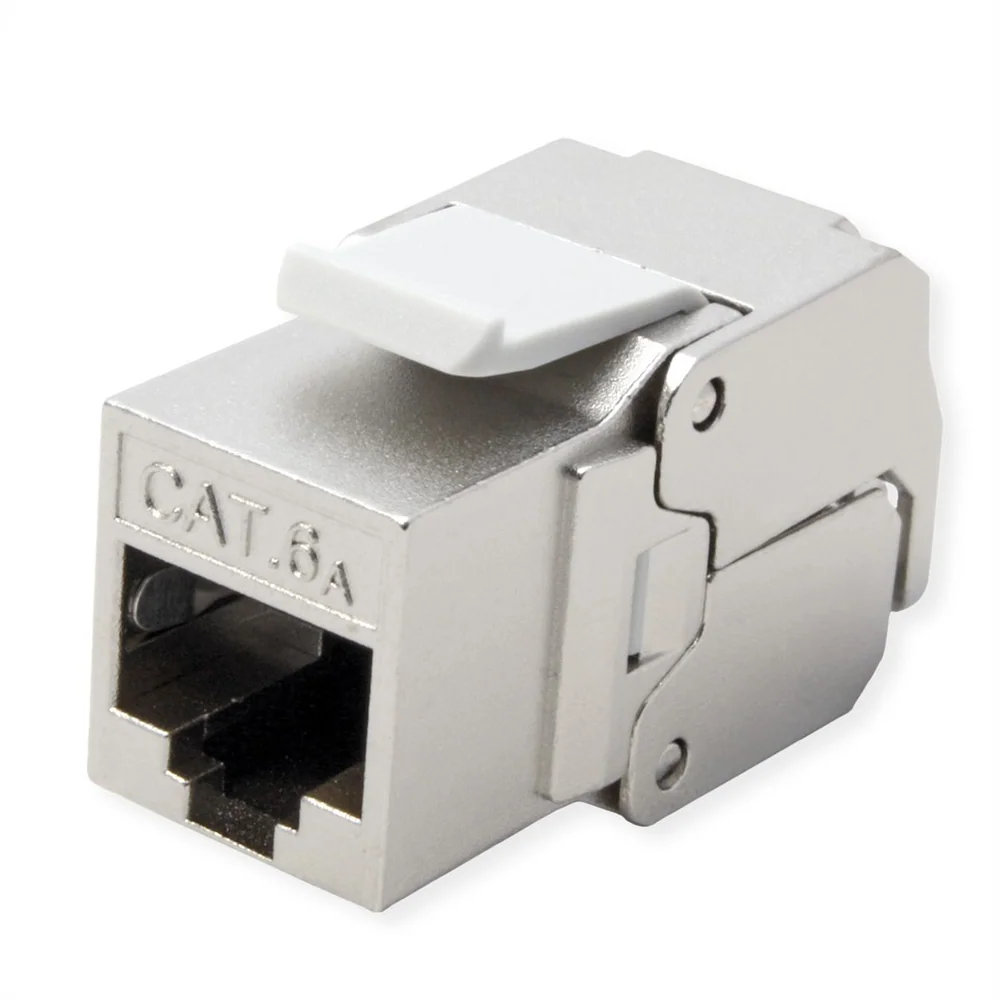

ROLINE Cat.6A (Class EA) Keystone, RJ-45, STP, with shutter, tool-free, silver
- Item number
- 21.17.0326-50
- Part number
- 21.17.0326
- EAN
- 7630049688704
- Brand
- ROLINE
- Weight
- 22 g
The solution for Cat.6A cabling for data rates up to 10Gbit/s!. Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The solution for Cat.6A cabling for data rates up to 10Gbit/s!.
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.
- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- With internal plastic shutter
- 180 degree cable entry
- For cables with AWG 23-26
- For cables with OD: 5.0-8.5mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 38×17×20mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Material (casing)
- Zinc die-casting
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 20 mm
- Width
- 17 mm
- Depth
- 38 mm
- Weight
- 22 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.005 kg
