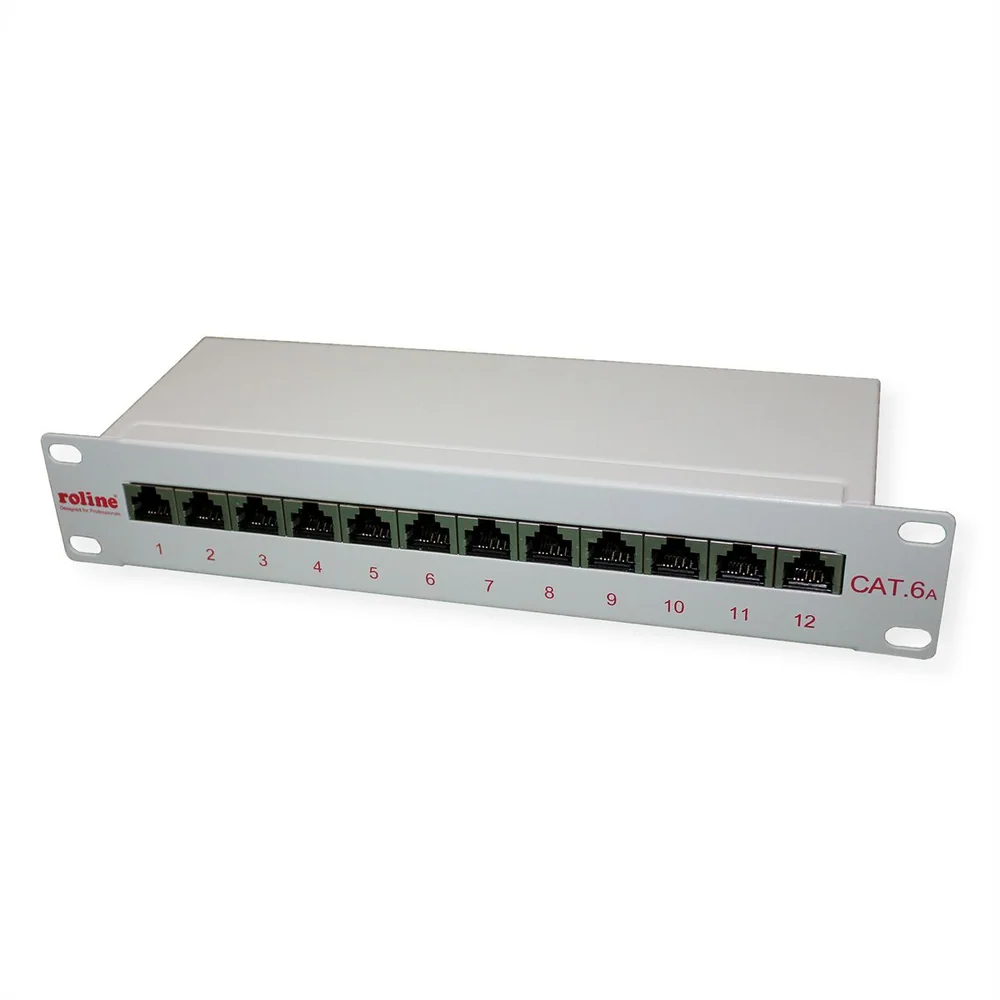

ROLINE Cat.6A (Class EA) 10-inch Patch Panel, 12 Ports, STP, grey
- Item number
- 26.11.0316-5
- Part number
- 26.11.0316
- EAN
- 7630049680111
- Brand
- ROLINE
- Weight
- 786.2 g
For smaller Network Installations 10"-Patch Panels are used This ROLINE 10"-Patchpanel offers 12 Ports Shielded version, Metal-Casing The Panel complies to the Standard of Cat. 6A / Class EA The cable connection on the…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- For smaller Network Installations 10"-Patch Panels are used
- This ROLINE 10"-Patchpanel offers 12 Ports
- Shielded version, Metal-Casing
- The Panel complies to the Standard of Cat. 6A / Class EA
- The cable connection on the back is implemented via LSA plus technology with colour coding in accordance with standard
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Patchpanel Cat.6A / Class EA
- Colour
- grey
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Cabinet system
- 10"-Technique
- Quantity of ports
- 12
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Modular assembly
- no
- Material (casing)
- metal
- Shield contacts
- Yes
- separate strain relief
- yes
- Connection direction
- Straight
- Dimensions (HxWxD)
- 44 x 254 (220) x 109 mm
- Height units
- 1 U
- Height
- 44 mm
- Width
- 254 mm
- Depth
- 140 mm
- Weight
- 786.2 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 170 mm
- Depth of packaging (single piece)
- 300 mm
- Package weight (single piece)
- 1 kg
