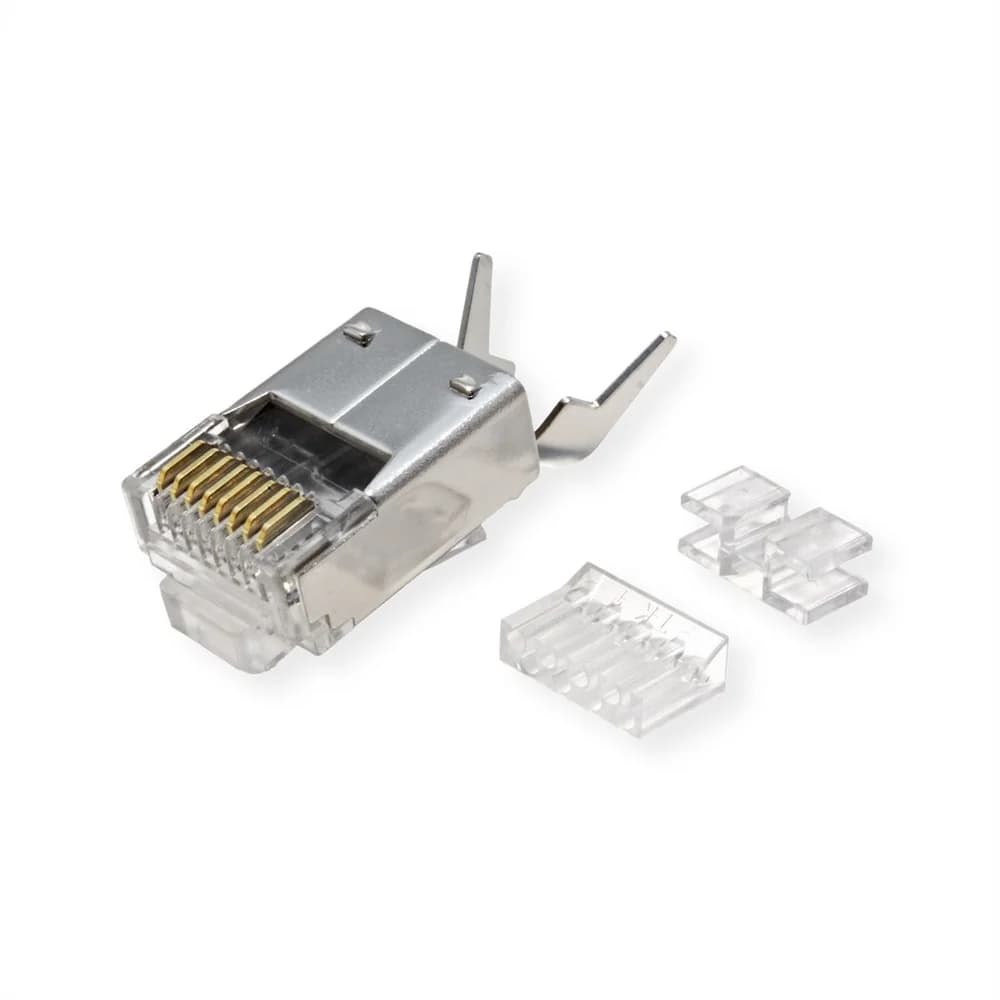

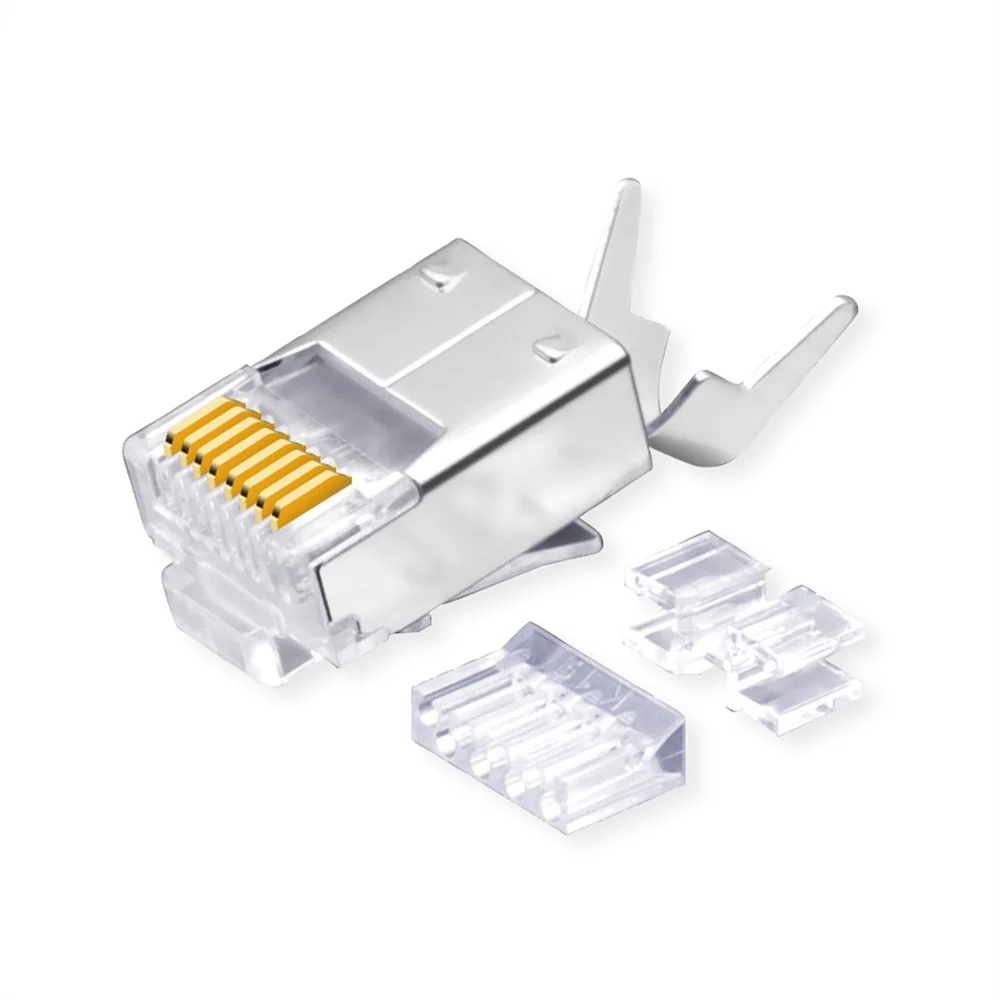

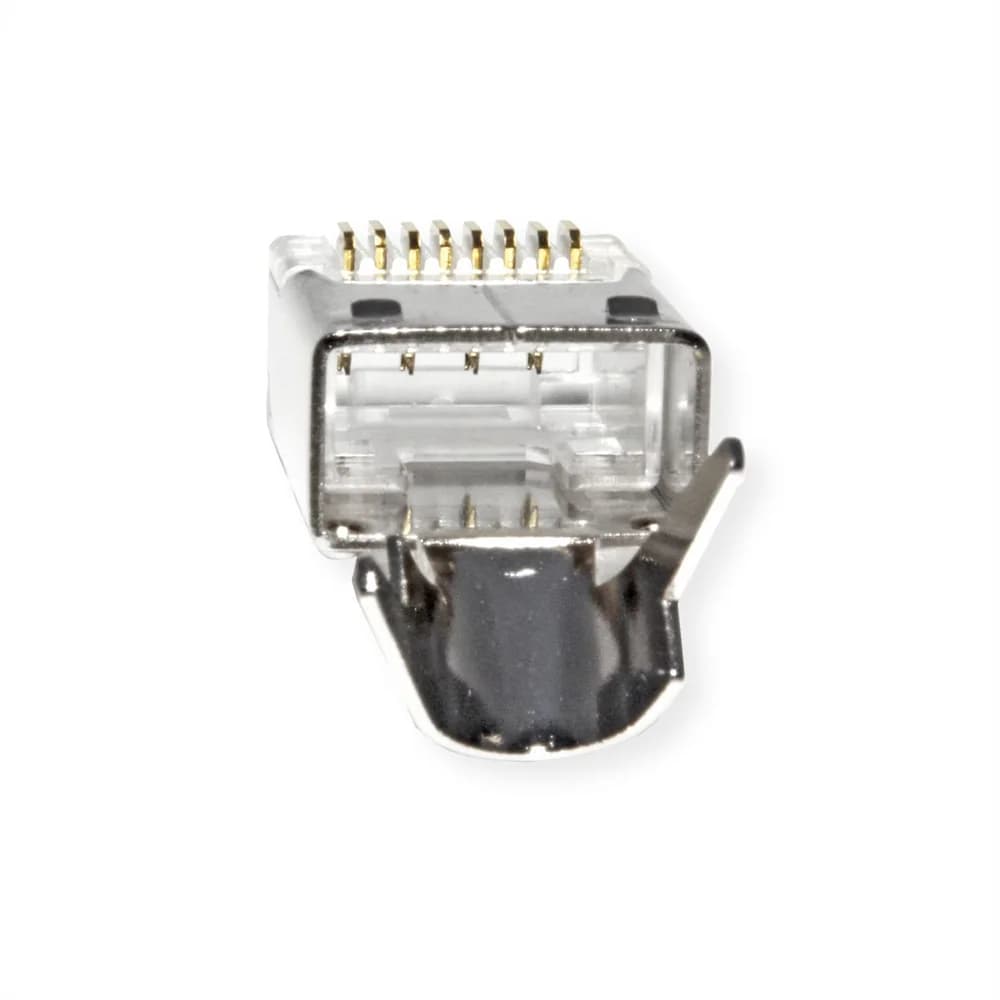

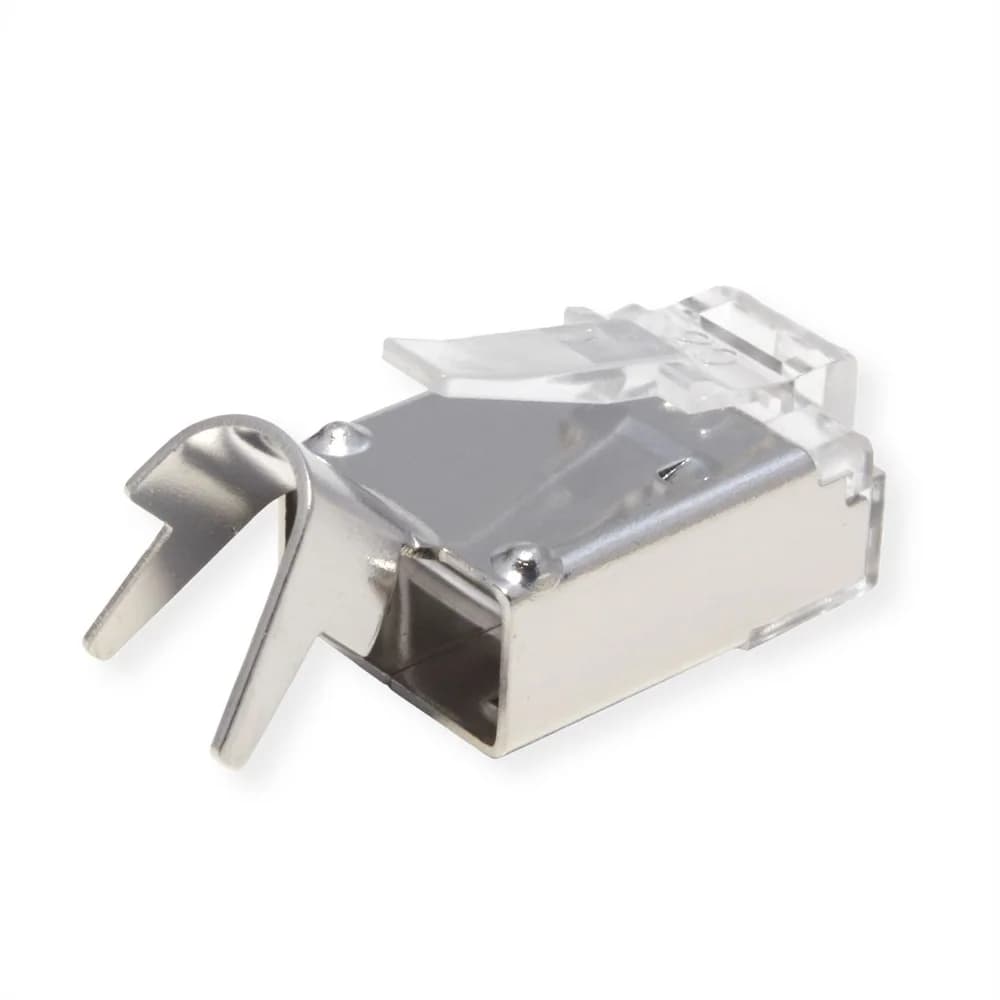

ROLINE Cat.6 (Class E) RJ-45 Modular Plug, STP, short body, 10 pcs.
- Item number
- 21.17.3095-50
- Part number
- 21.17.3095
- EAN
- 7630049687042
- Brand
- ROLINE
- Weight
- 31.1 g
Modular connector for twisted pair network cabling
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Modular connector for twisted pair network cabling
- Cat.6 modular plugs, 8p8c
- Shielded
- Gold plated contacts
- Suitable for solid and stranded wire
- For round cables
- With insertion support
- Package unit: 10 connectors
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ-45 Modular Plugs
- Colour
- transparent
- Scope of delivery
- 10 pcs
- Shield type
- Screened
- Transfer quality
- Cat6 / Class E
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Modular assembly
- yes
- Material (casing)
- Kunststoff / Metallschirmung
- Shield contacts
- ja
- separate strain relief
- no
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 12 mm
- Width
- 11.7 mm
- Depth
- 17.8 mm
- Weight
- 31.1 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 60 mm
- Package weight (single piece)
- 0.032 kg
