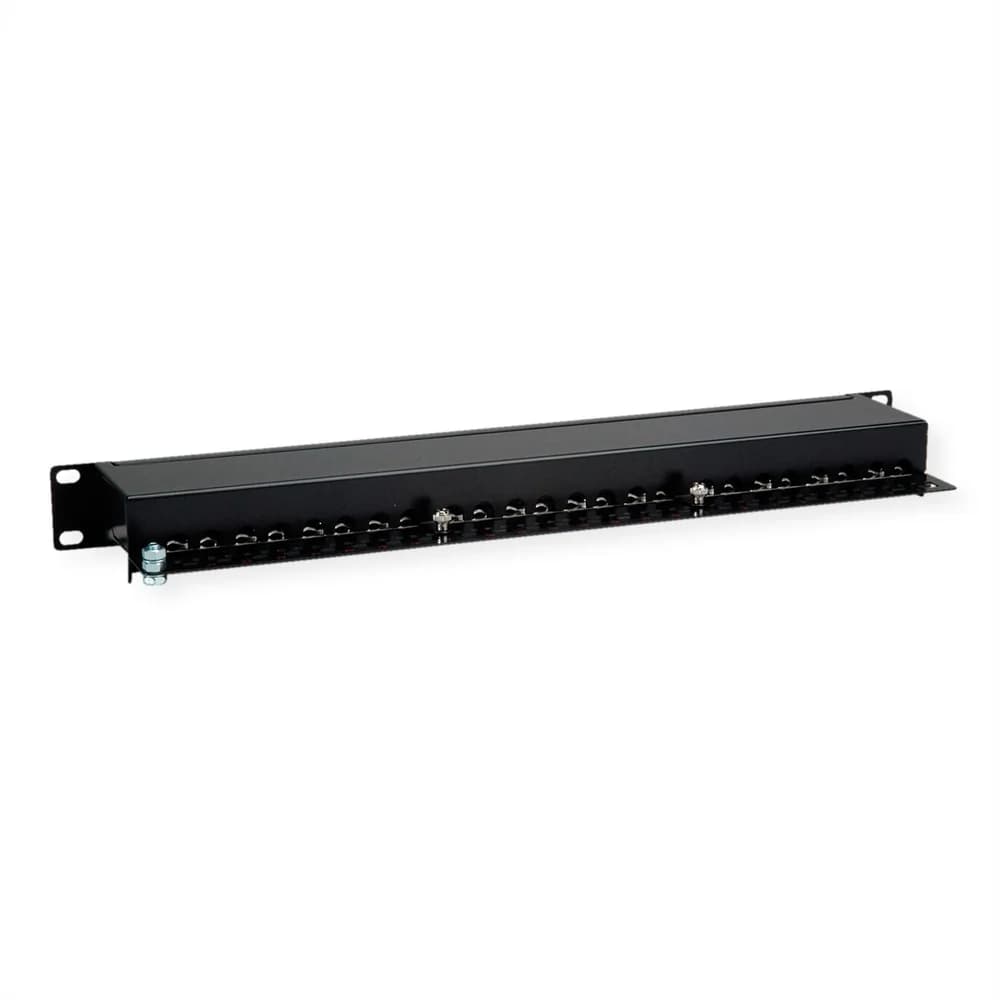

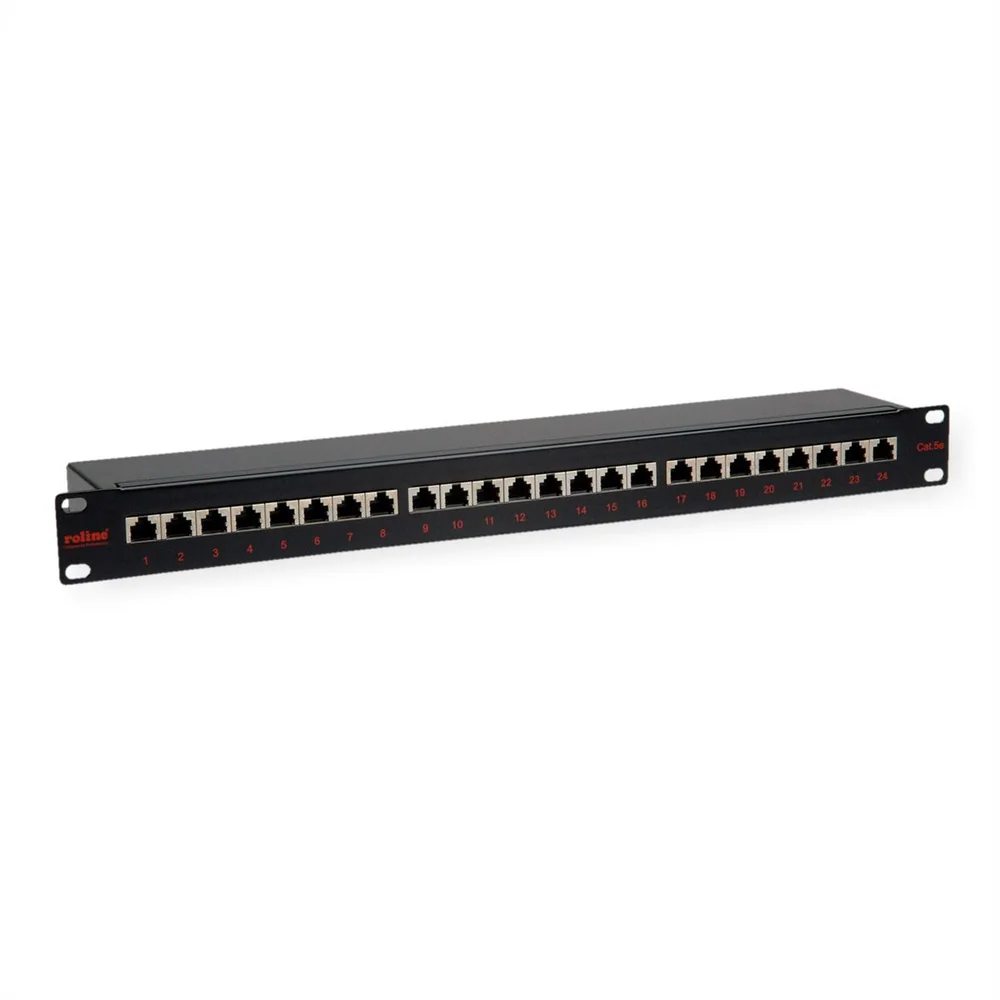

ROLINE Cat.5e (Class D) 19" Patch Panel, 24 Ports, STP, black
- Item number
- 26.11.0328-3
- Part number
- 26.11.0328
- EAN
- 7611990947775
- Brand
- ROLINE
- Weight
- 1506.2 g
The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568 Sheet…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard
- The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
- Sheet steel housing and cover
- 24 Ports
- Colour: Black
For a structured cabling system we recommend to use the following components:
ROLINE Cat.5e S/FTP Cable, Solid Wire, AWG24: 21.15.0019 (100 m), 21.15.0020 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e S/FTP Patch Cord, grey, 5 m: 21.15.0305
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Patchpanel Cat.5e
- Colour
- black
- Scope of delivery
- 1x patch panel, cable ties, installation instructions
- Shield type
- Screened
- Transfer quality
- Cat5e / Class D
- Cabinet system
- 19"-Technique
- Quantity of ports
- 24
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Modular assembly
- no
- Material (casing)
- Sheet steel
- Shield contacts
- Yes
- separate strain relief
- yes
- Connection direction
- Straight
- Height units
- 1 U
- Height
- 44 mm
- Width
- 482.6 mm
- Depth
- 136 mm
- Weight
- 1506.2 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 570 mm
- Package weight (single piece)
- 1.93 kg
