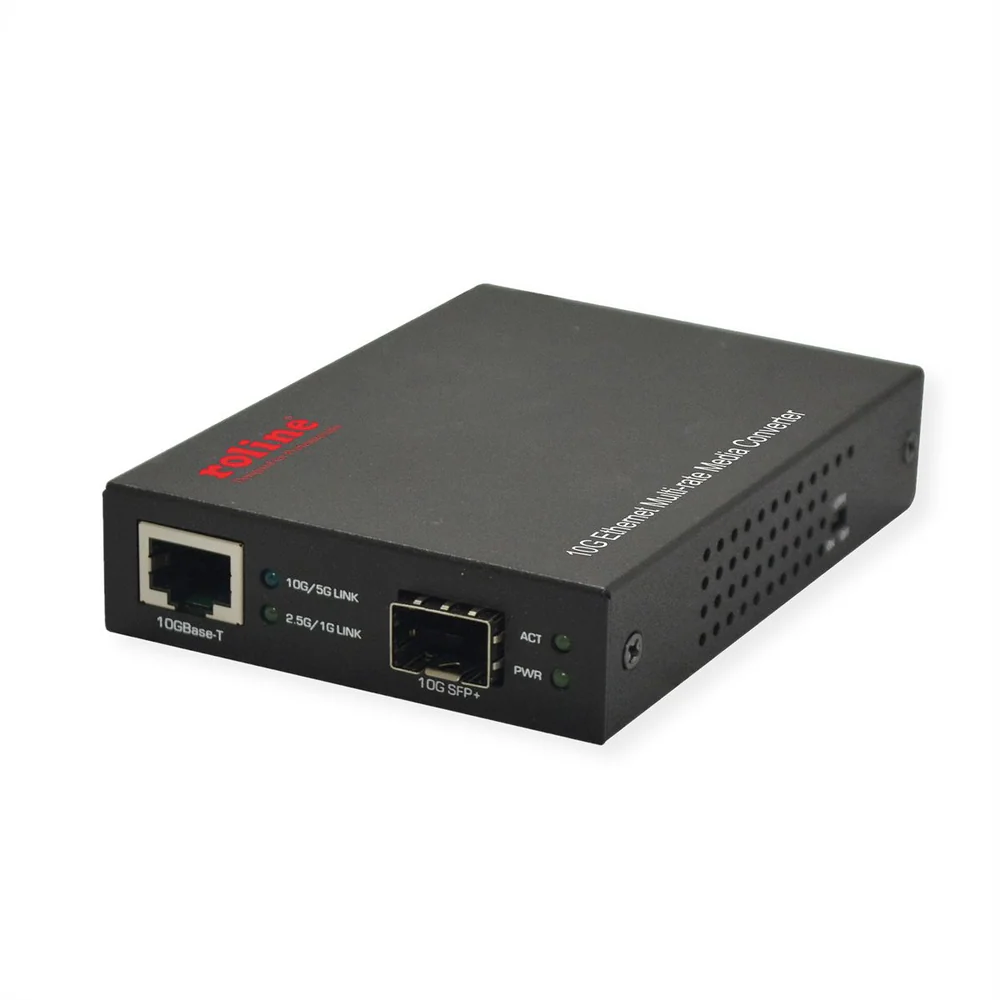

ROLINE 10G Ethernet Multi-rate Media Converter, Industrial Converter RJ45, Fiber Optic

This Ethernet Multi-rate Media Converter enables the conversion from copper to fiber at 1G, 2.5G, 5G and 10G.

• The device supports the following multi-rate and media conversion:

- 10GBASE-T to 10GBASE-R conversion
- 5GBASE-T to 5GBASE-R conversion
- 2.5GBASE-T to 2500BASE-X conversion
- 1000BASE-T copper to 1000BASE-X (without auto-negotiation support) fiber conversion

• Supports auto-negotiation and Auto-MDI/MDI-X detection
• Supports full wire speed conversion
• Supports transparent conversion for any packet types with no packet length limitation
• Provides link fault pass through function
• LED Indication Power status, Activity, Speed link status
• Copper port:

- Shielded RJ-45,
- Auto-negotiation capable
- Auto-MDI/MDI-X 10G/5G/2.5G/1Gbps, Full/Half duplex

• Fiber port:

- SFP+ slot for SFP or SFP+ fiber transceiver
- 10G/5G/2.5G/1Gbps, Full duplex
- LFPT function

• Power: Input: 5VDC 1.5A, consumption: 3.8W (max.)
• Operating Temperature: - 20 °C - +70 °C
• Dimensions: 75 x 102 x 22.2 mm (WxDxH)
