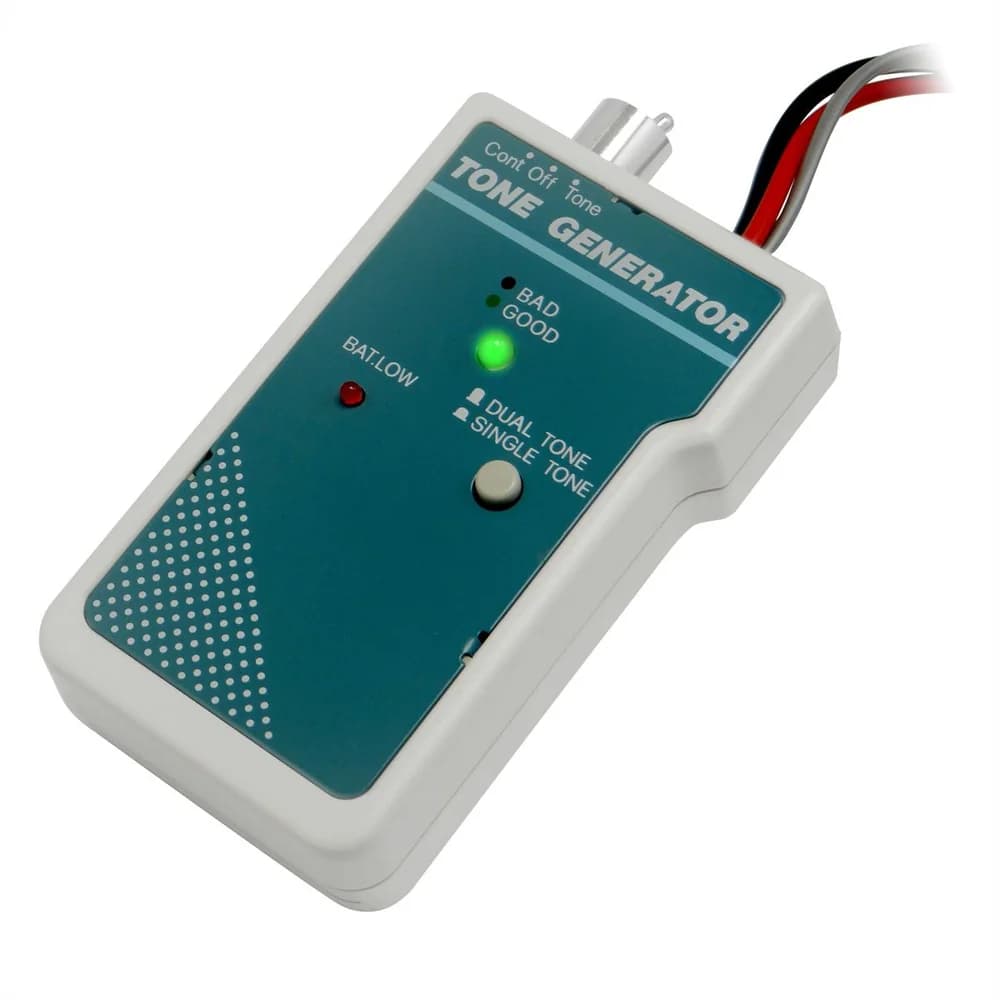

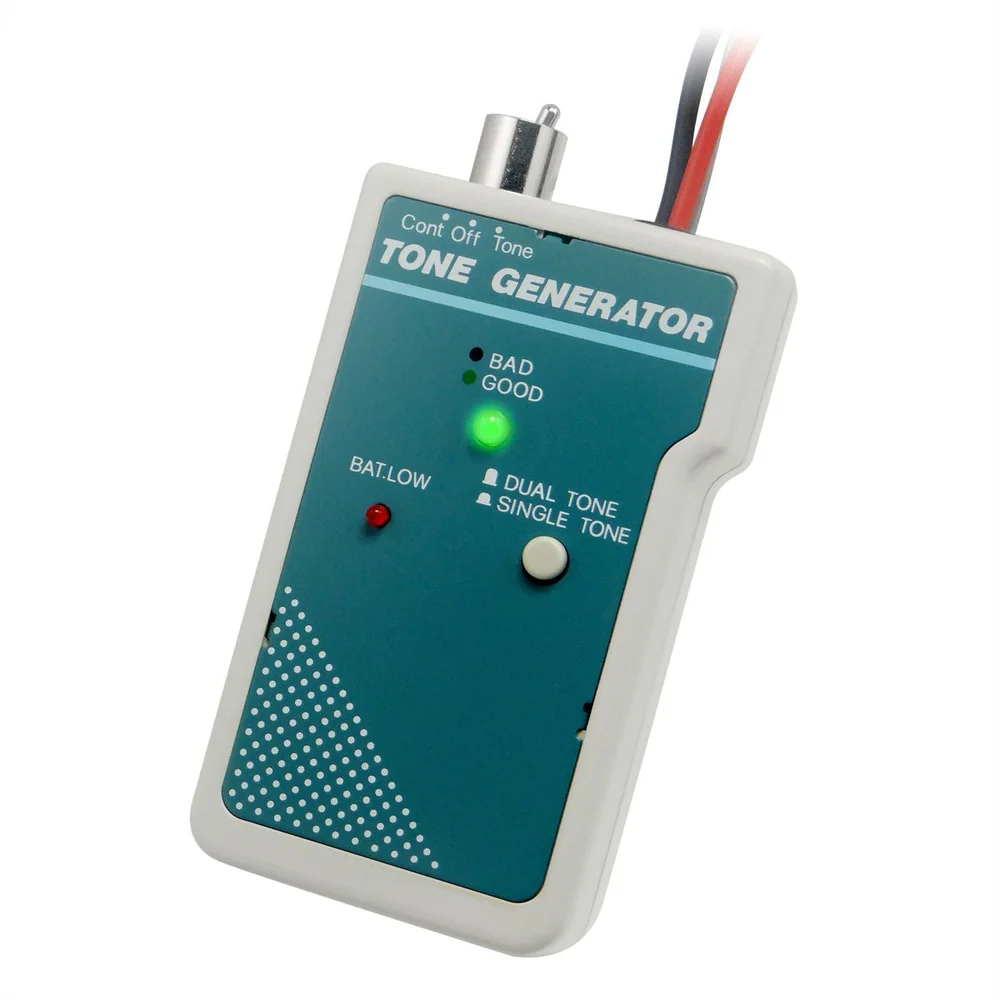

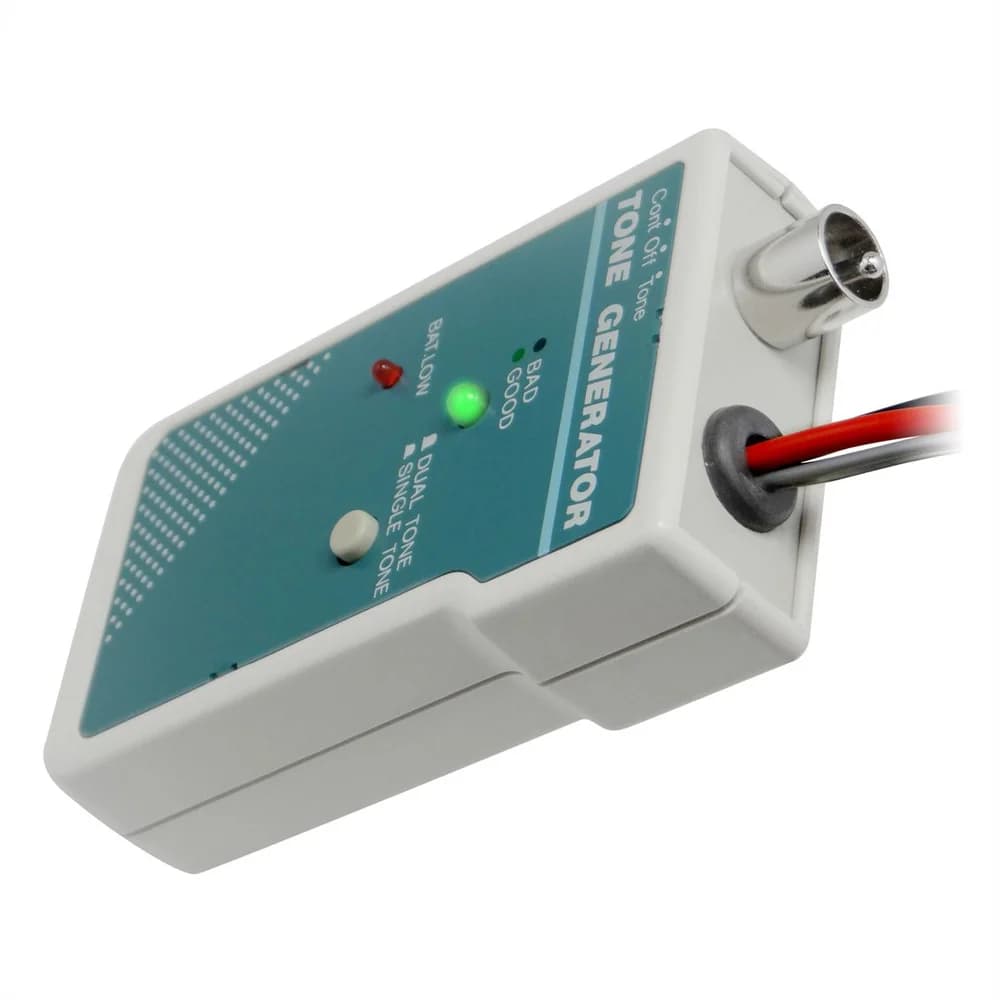

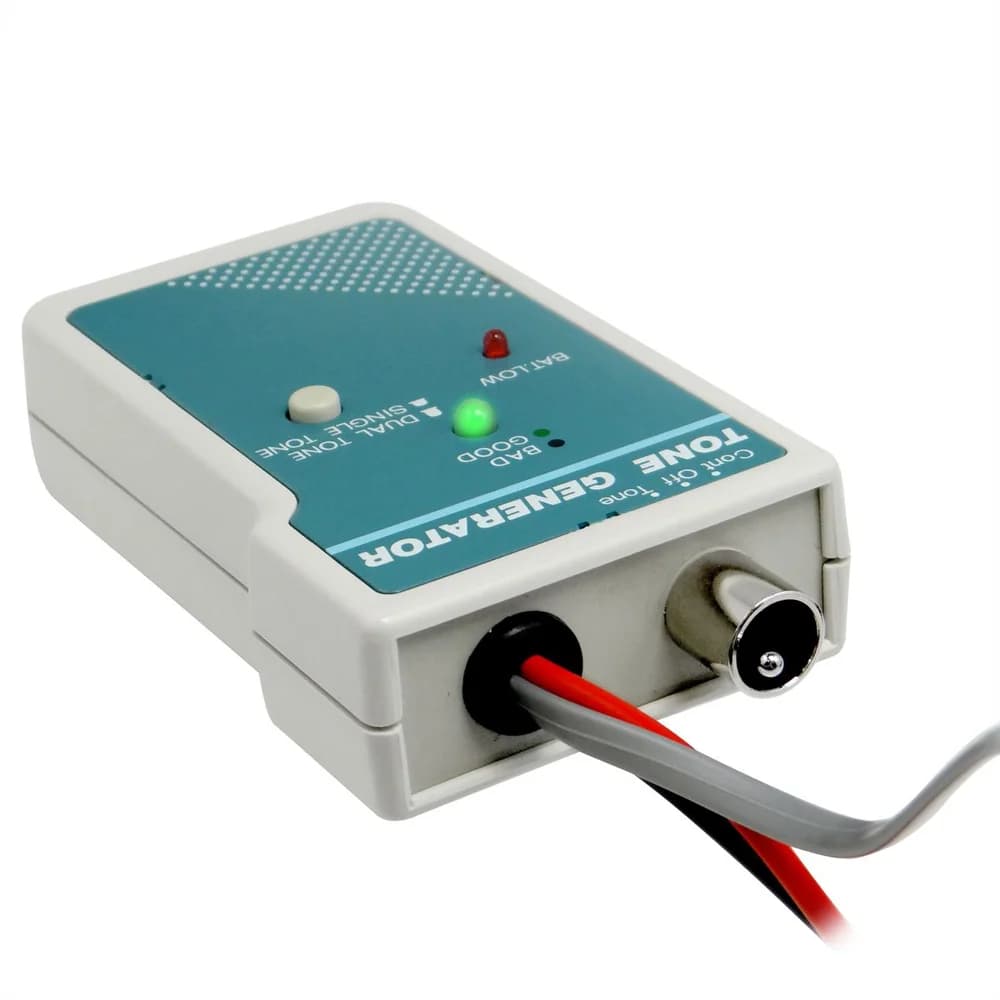

HOBBES Tone Generator

The Tone Generator is a highly practical network installation and trouble–shooting tool, which features a single or multi–tone signal, two test leads and a 4–conductor modular cable

The signal, emitted by the Tone Generator can be easily traced by the Probe, even when cables are in a bundle or hidden in a mess of punch down blocks or wall plates. The Tone Generator & Probe can be used to verify cable continuity, identify wring faults, determine line polarity and voltage in network and modular telephone line.

The Probe is equipped with a tone amplifier and an LED indicator that detects audible frequency tones for accurate tracing and identification of wires. It’s plastic conductive tip prevents shorting of expensive telecommunication and network equipment.

SPECIFICATIONS

Output power: 5V
Power supply and life: 9 Volt DC power battery
Auto power off: One 3 position toggle switch for operation modes control
Dimension: 115 x 63 x 26mm
Weight: 190g
