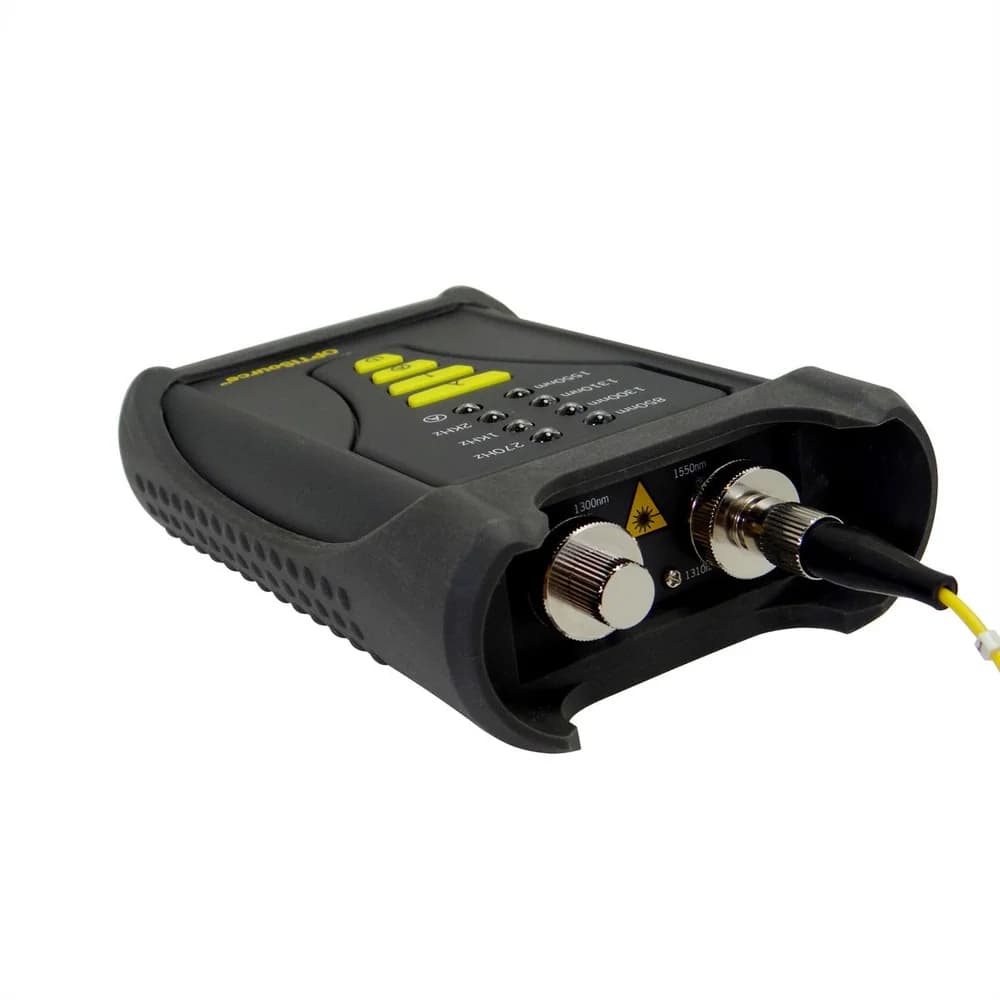

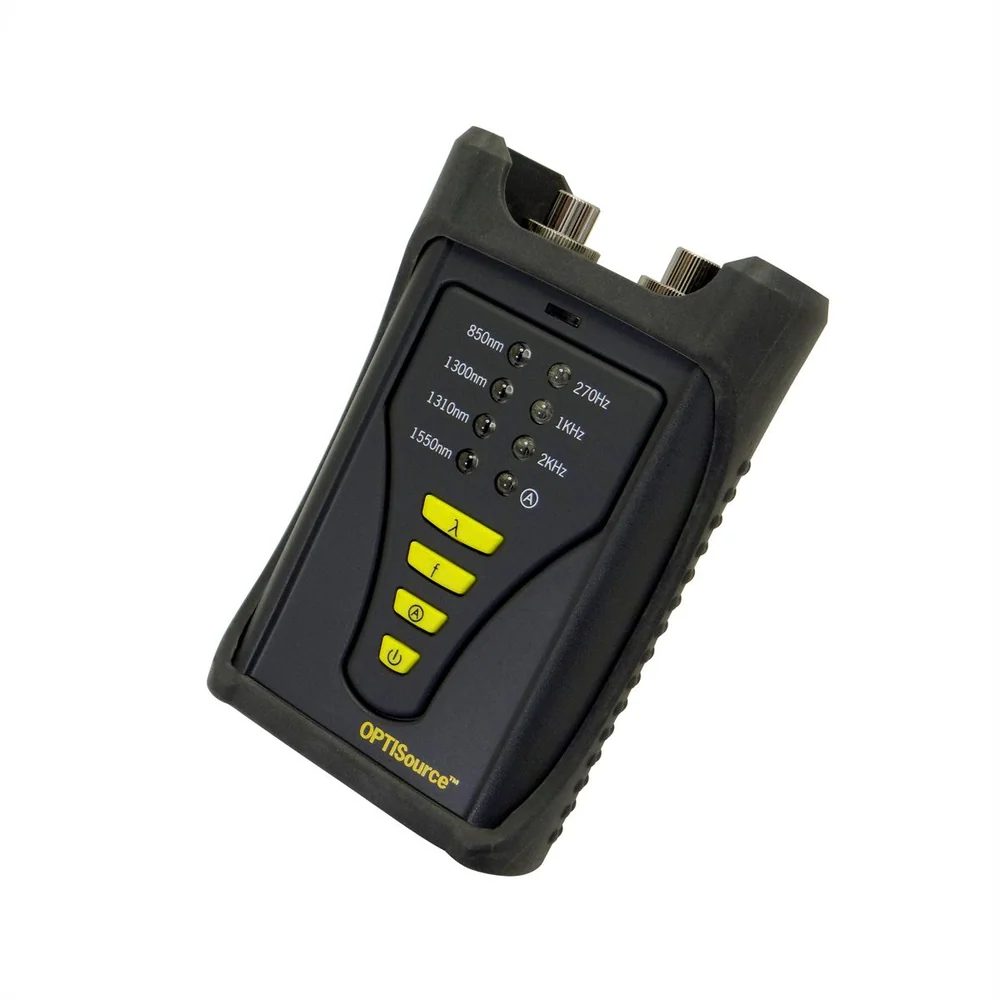

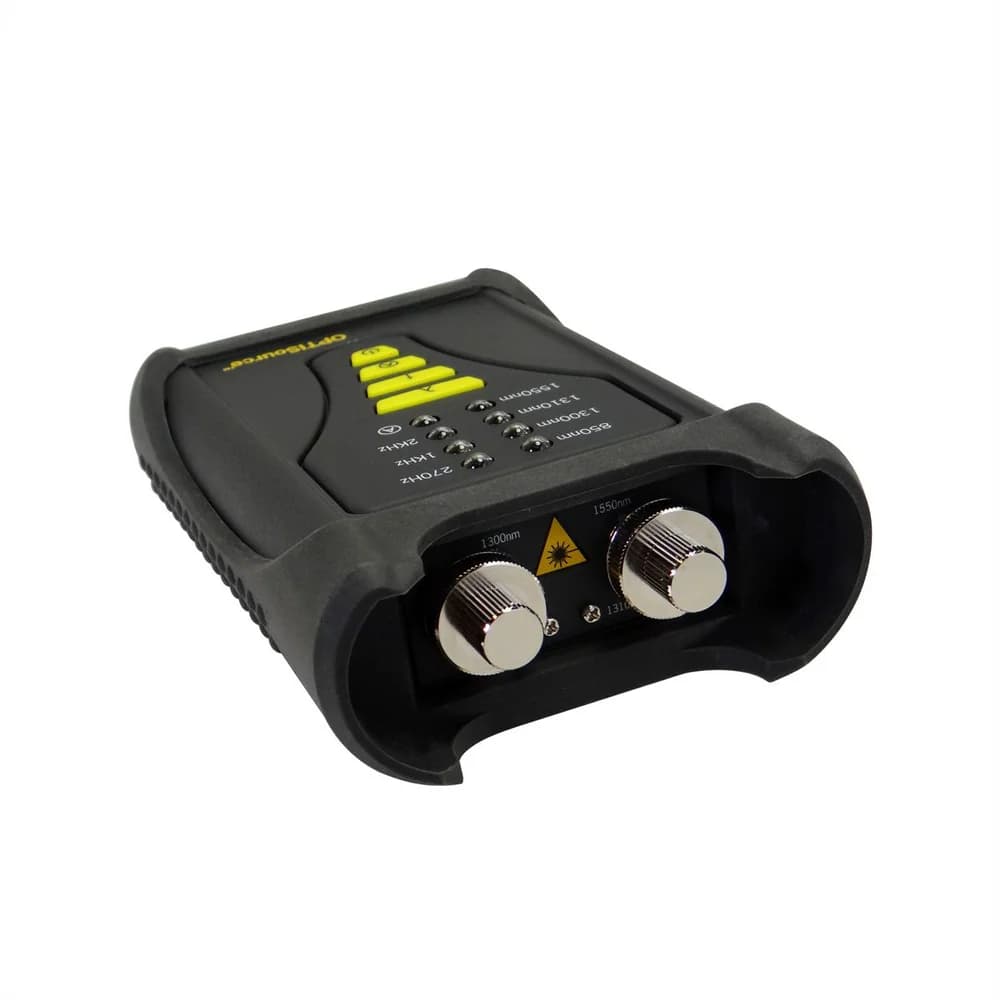

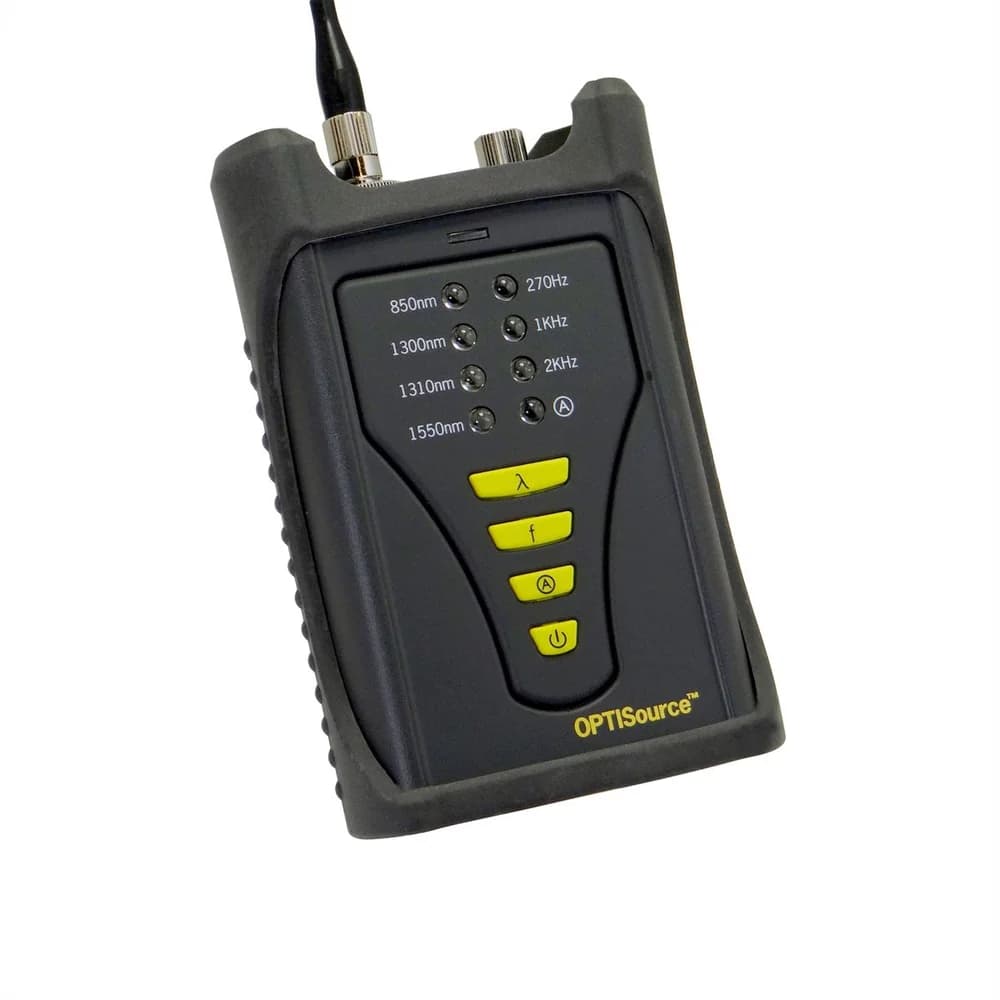

HOBBES OPTISource 850-1300-1310-1550 nm

The OPTISource – Quad Wavelength SM/MM 850/1300/1310/1550nm Fiber Optic Light Source is a high performance stabilized source that is widely used in fiber network installation and maintenance. New version OPTISource - Fiber Optic Light Source can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode.

• There are three output modes for each wavelength: CW/MOD/AUTO-IDENTIFY
• CW and 270Hz, 1kHz, 2kHz modulated signals
• Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
• LED indicators
• Auto power off for power saving

- Wavelength: 850nm, 1300nm, 1310nm, 1550nm
- Spectral width: ≤5nm
- Output power: ≥–13dBm@850/1300nm; ≥–5dBm@1310/1550nm
- Stability: ±0.15dB/8hr@1310/1550nm; ±0.25dB/8hr@ 850nm/1300nm
- Connector type: With replaceable FC, SC, ST connectors
- Auto power off: 30 min. without key pressed
- Frequency: 270Hz, 1kHz, 2kHz
- Battery: 4 x AAA
- Dimensions: 125 x 78 x 31mm
- Weight: 145g

This device is classified as a CLASS 1 LASER product!

• Avoid any exposure to eyes!
• This device must only be used for its intended purpose. Any improper use of this

product may result in serious damage. Use with caution!

• Keep the device safely stored and away from children!
• NEVER LOOK INTO THE LASER BEAM!
