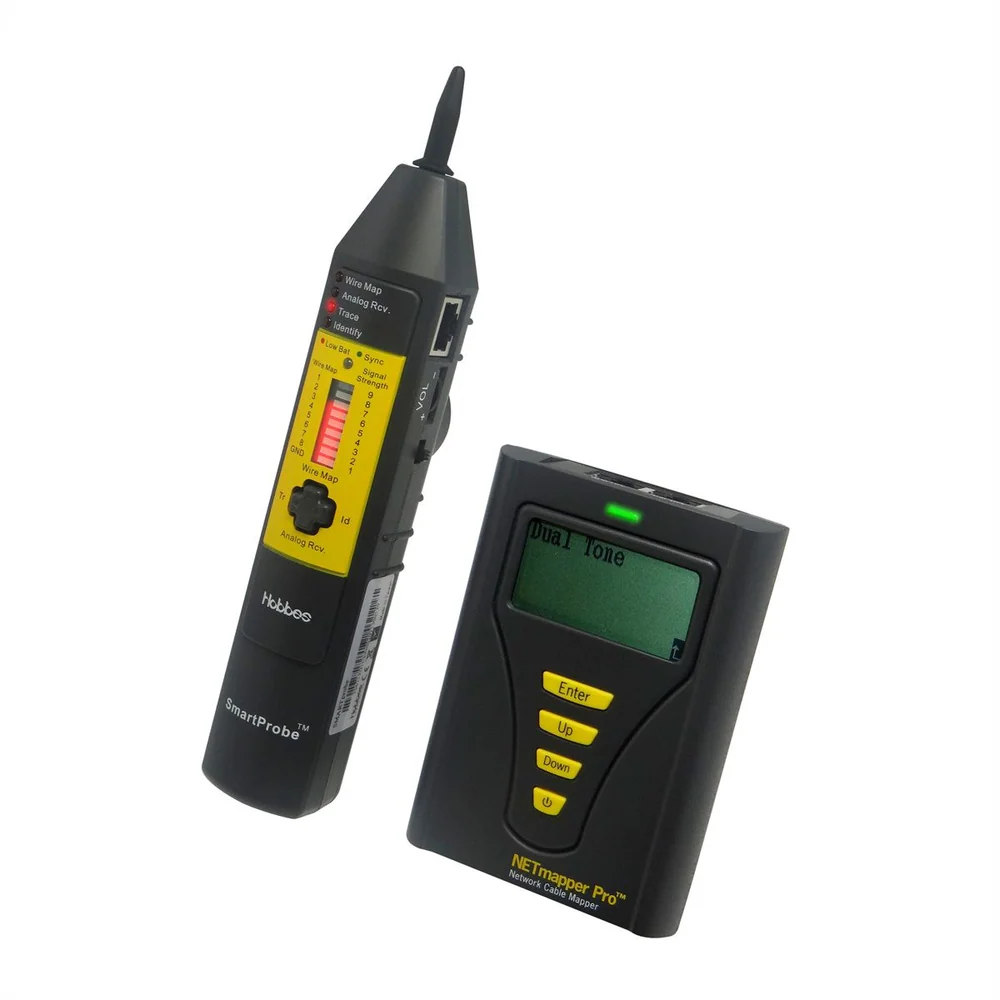

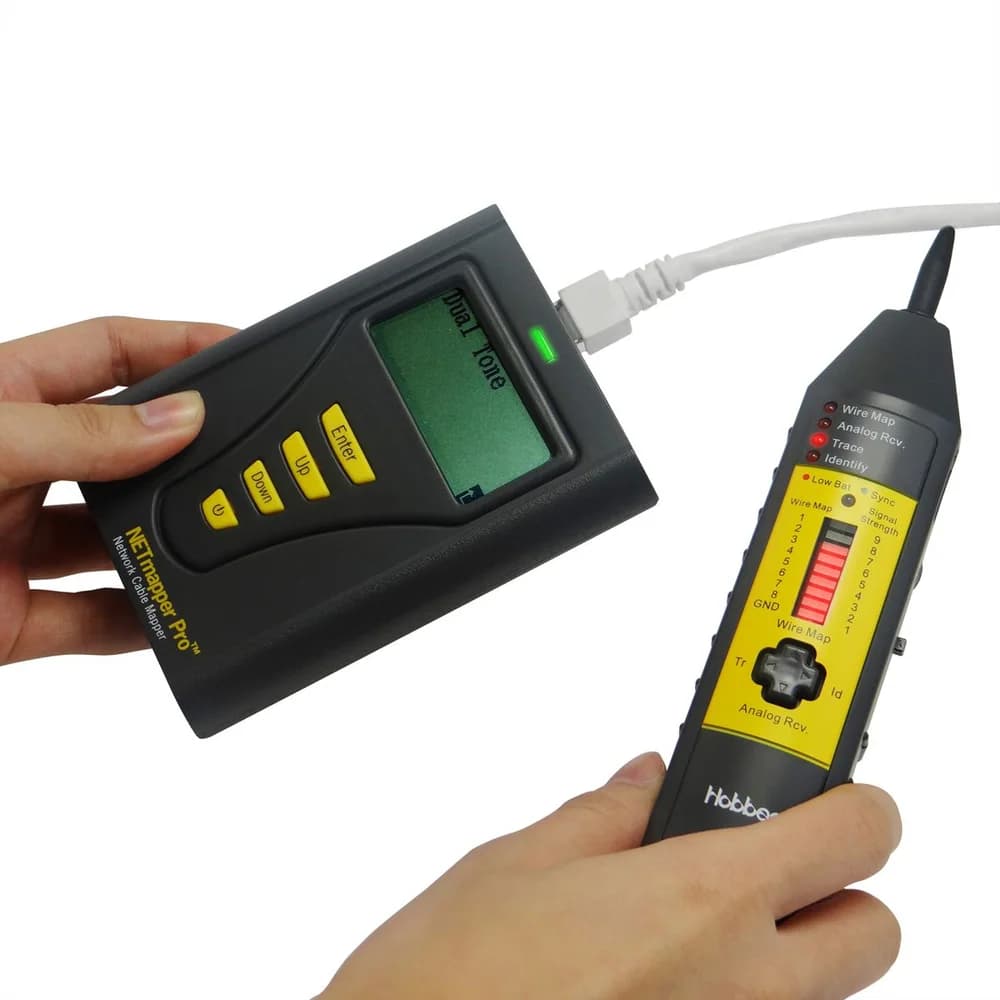

HOBBES NETmapper Pro & SmartProbe Kit

• Displays the Ethernet port status: Identifies Speed up to Giga (10/100/1000)
• Ping default router, DNS Server and user defined device
• Scans and lists all the PC Host with IP address and computer host name or MAC address
• PC Host service detects: HTTP/Telnet/DHCP/FTP and SNMP services
• Incorporates port-finder function: locate corresponding socket on 10/100M or giga hub/switch
• Wire map results are displayed in a pin–to–pin format
• Remote ID number indication for recognition on workstations

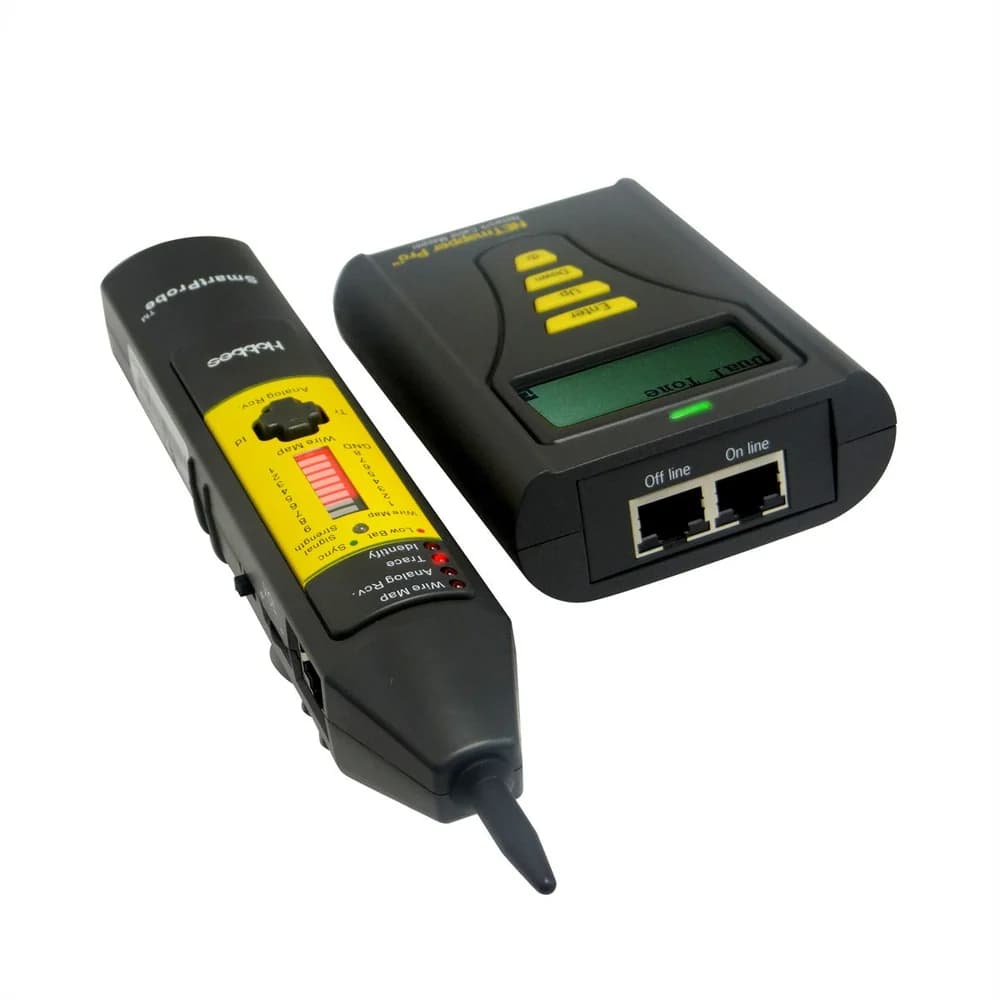

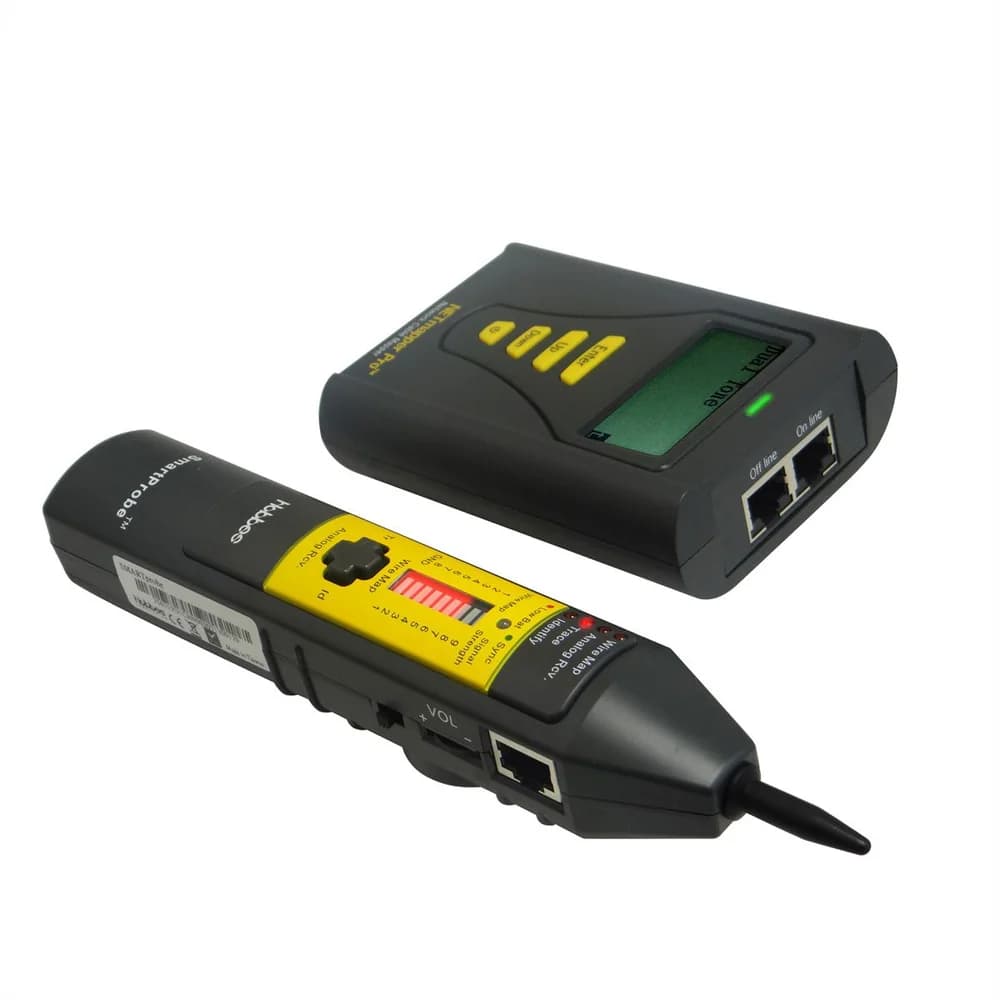

• RJ-45 ports on main unit for either On–line or Off–line Test
• Measures cable length without remote of Cat5, Cat5e, Cat6 and Cat7 cables
• Self–calibrating ability for non–standard cable tester (length test) and/or to increase measuring accuracy
• User define unit of measurement in meter or feet for cable length tests
• The Tone Generator function sends 1kHz tone on all pins with 4 special tonalities (The Digital generator function sends single tone and dual tone)
• Automatically detects PoE devices and voltage

Display: LCD
Connector type: RJ-45
Accuracy: ±2m less than 10m, ±5% over 10m (32.81ft.)
Test range for cable length: 1 to 300m
Split pairs detection: Minimum 1.5m
Tone generator: Single/dual digital tone
Operating temp. : 0ºC to 50ºC
Storage temp. : -30℃ to 50℃
Humidity: 10% to 90%
Master Dimensions: 110 x 78 x 31mm
Remote Dimensions: 44 x 32 x 28.5mm
Weight: 145g
Battery: AAA Alkaline battery x 4
