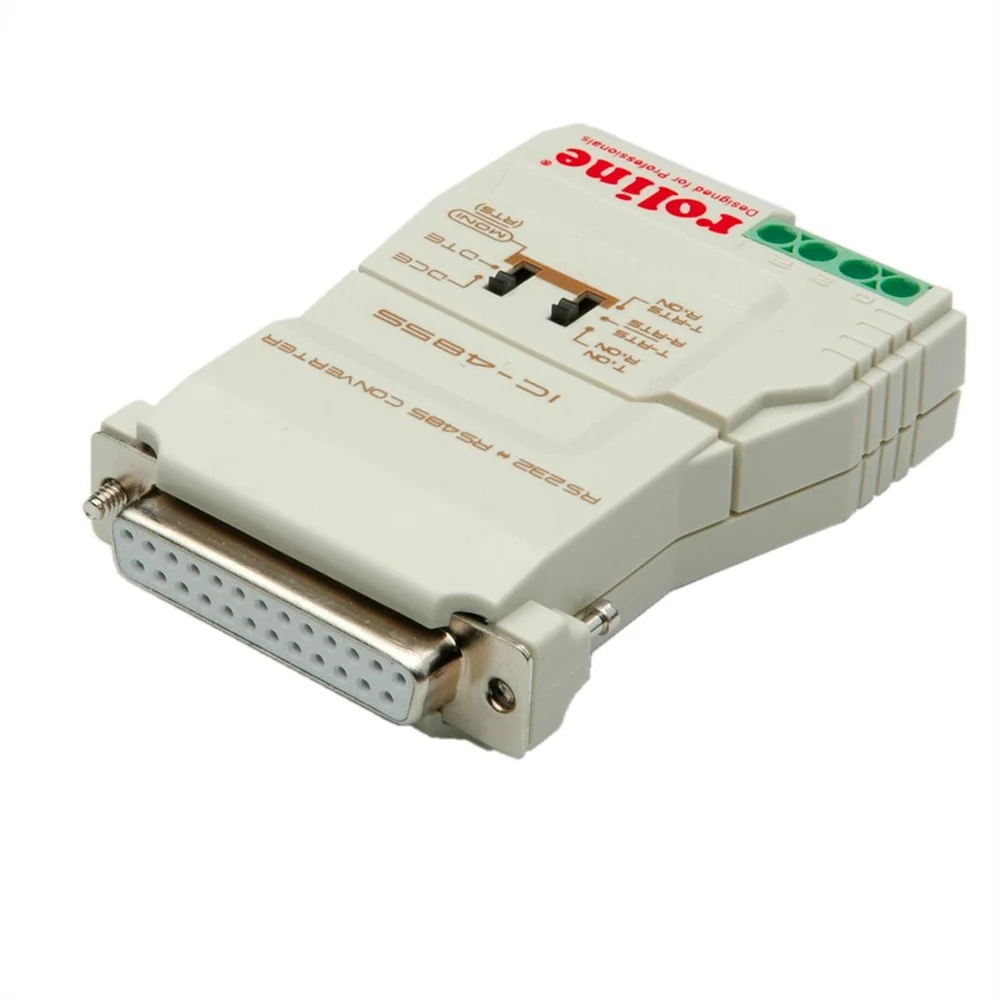

Converter RS232-RS485, without Galvanic Isolation
- Item number
- 12.02.1028-20
- Part number
- 12.02.1028
- EAN
- 7611990917167
- Brand
- ROLINE
- Weight
- 47.2 g
DCE/DTE adjustable Full duplex transfer over 4 lines Only the data lines are converted 25 pin socket on the RS232 side Power supply via mains adapter Robust plastic casing
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- DCE/DTE adjustable
- Full duplex transfer over 4 lines
- Only the data lines are converted
- 25 pin socket on the RS232 side
- Power supply via mains adapter
- Robust plastic casing
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- Serial interface converter
- Colour
- grey
- Scope of delivery
- converter, power cupply unit (9V DC, 300mA), manual
- Side 1 connection (PC)
- Terminal Block 4 pin
- Side 2 connection (Peripherals)
- DB25 Female
- Side 1 Connector Type
- Terminal block
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- D-Sub 25-pin (DB-25)
- Side 2 Connector Gender
- Female
- Conversion direction
- RS232, RS485
- Area of application
- External
- Dimensions (HxWxD)
- 19 x 75 x 54 mm
- Technical particularity
- without galvanic isolation
- Height
- 19 mm
- Width
- 75 mm
- Depth
- 54 mm
- Weight
- 47.2 g
Packaging
- Height of packaging (single piece)
- 240 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.37 kg
